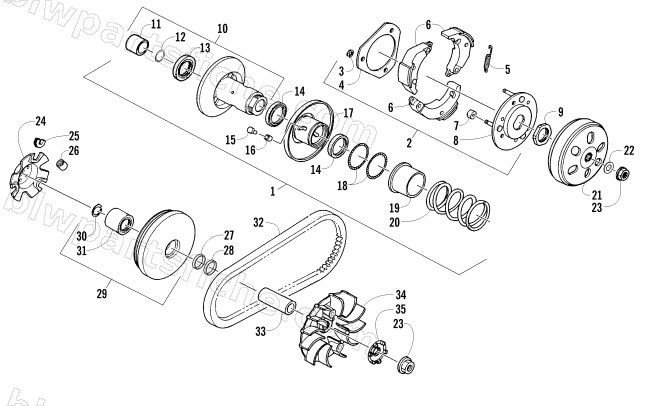

CLUTCH ASSEMBLY
2012 150 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-986 | PULLEY SUB ASSY | 1 | $438.95 | |
| 2 | 3304-981 | PLATE ASSY DRIVE | 1 | $122.95 | |
| 3 | 3304-054 | CIR CLIP 7MM | 1 | $0.95 | |
| 4 | 3304-983 | PLATE CLUTCH SIDE | 1 | $12.35 | |
| 5 | 3304-984 | SPRING CLUTCH | 1 | $4.40 | |
| 6 | 3304-985 | WEIGHT CLUTCH | 1 | $58.95 | |
| 7 | 3303-780 | RUBBER CLUTCH DAMPER | 1 | $3.57 | |
| 8 | 3304-982 | PLATE COMP DRIVE | 1 | $156.95 | |
| 9 | 3304-994 | NUT SPECIAL 28MM | 1 | $3.02 | |
| 10 | 3304-988 | FACE ASSY DRIVEN | 1 | $150.95 | |
| 11 | 3304-996 | BRG NDL 20*29*18 | 1 | $30.95 | |
| 12 | 3304-149 | CIR CLIP IN 28MM | 1 | $1.50 | |
| 13 | 3304-070 | BRG BALL RADIAL 6902U 15*28*7 | 1 | $26.95 | |
| 14 | 3304-997 | SEAL DRIVEN FACE 34*41*4 | 1 | $26.95 | |
| 15 | 3304-990 | PIN ROLLER GUIDE | 1 | $2.06 | |
| 16 | 3303-787 | ROLLER GUIDE | 1 | $4.82 | |
| 17 | 3304-989 | FACE COMP MOVABLE DRIVEN | 1 | $82.95 | |
| 18 | 3304-619 | O-RING PINION CAP | 1 | $4.82 | |
| 19 | 3304-992 | COLLAR SEAL | 1 | $13.73 | |
| 20 | 3304-991 | SPG DRIVEN FACE | 1 | $37.95 | |
| 21 | 3304-973 | OUTER CLUTCH | 1 | $90.95 | |
| 22 | 3304-995 | WASHER THRUST | 1 | $3.30 | |
| 23 | 3303-334 | NUT FLANGE 12MM | 1 | $1.23 | |
| 24 | 3304-979 | PLATE RAMP | 1 | $20.63 | |
| 25 | 3304-980 | PIECE SLIDE | 1 | $3.16 | |
| 26 | 3304-978 | ROLLER COMP WEIGHT | 1 | $4.40 | |
| 27 | 3305-744 | COLLAR DRIVE FACE | 1 | $8.21 | |
| 28 | 3305-745 | COLLAR DRIVE FACE | 1 | $6.47 | |
| 29 | 3304-976 | FACE COMP MOVABLE DRIVE | 1 | $66.95 | |
| 30 | 3304-160 | CLIP PISTON PIN 33MM | 1 | $0.95 | |
| 31 | 3304-977 | COLLAR DRIVE FACE | 1 | $6.34 | |
| 32 | 3304-987 | BELT DRIVE | 1 | $50.95 | |
| 33 | 3304-975 | BOSS DRIVE FACE | 1 | $26.95 | |
| 34 | 3304-974 | FACE DRIVE | 1 | $47.95 | |
| 35 | 3304-993 | RATCHET KICK STARTER | 1 | $20.63 |
