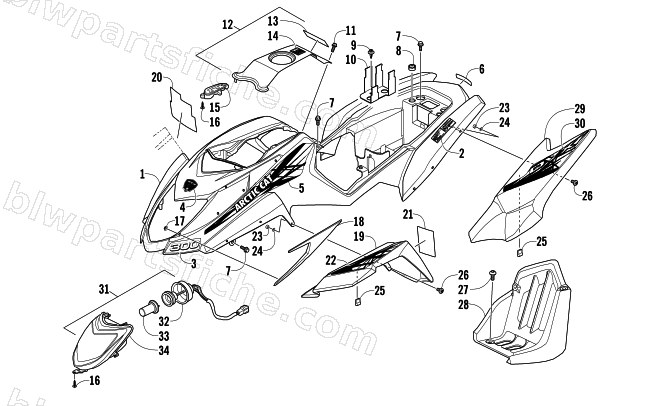

2012 Arctic Cat 300 DVX — BODY PANEL AND HEADLIGHT ASSEMBLY
2012 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-696 | BODY ASSY,MAIN-W/DECALS (ORANGE) | 1 | $421.95 | |
| 2 | 2411-256 | DECAL,TIRE PRESSURE/PASSENGER | 1 | $3.30 | |
| 3 | 2411-608 | DECAL,FRONT-300 (DVX) | 1 | $23.39 | |
| 4 | 9611-399 | DECAL,EMBLEM-50TH ANNIVERSARY-CHROME | 1 | $32.95 | |
| 5 | 2411-604 | DECAL,SIDE-RH (300 DVX) | 1 | $58.95 | |
| 5 | 2411-605 | DECAL,SIDE-LH (300 DVX) | 1 | $58.95 | |
| 6 | 0411-814 | DECAL,"ARCTIC CAT"-WHT | 1 | $50.95 | |
| 7 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 8 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 9 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 10 | 3304-339 | STAY START MAG SW | 1 | $29.95 | |
| 11 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 12 | 3306-111 | COVER ASSY,TANK (BLACK W/DECALS) | 1 | $37.95 | |
| 13 | 1411-109 | DECAL,WARNING-REVERSE | 1 | $10.97 | |
| 14 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 15 | 3304-381 | GUIDE COVER CHANGE HANDLE | 1 | $16.49 | |
| 16 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 17 | 3304-418 | NUT STAMPED | 1 | $1.23 | |
| 18 | 3304-383 | PANEL R TRIM (BLACK) | 1 | $13.73 | |
| 18 | 3304-517 | PANEL TRIM LH-BLACK | 1 | $5.37 | |
| 19 | 3306-700 | FENDER R FRONT-W/DECALS (ORANGE) | 1 | $86.95 | |
| 19 | 3306-701 | FENDER L FRONT-W/DECALS (ORANGE) | 1 | $86.95 | |
| 20 | 1411-945 | DECAL,WARNING-DVX PRE RIDE | 1 | $26.95 | |
| 21 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 22 | 2411-602 | DECAL,FENDER-FRONT-RH (300 DVX) | 1 | $42.95 | |
| 22 | 2411-603 | DECAL,FENDER-FRONT-LH (300 DVX) | 1 | $42.95 | |
| 23 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 24 | 3304-432 | WASHER PLAIN 7MM | 1 | $0.81 | |
| 25 | 3304-683 | CLIP FENDER MOUNTNG | 1 | $3.02 | |
| 26 | 3304-406 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 27 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 28 | 3306-050 | MUDGUARD,R FLOOR | 1 | $50.95 | |
| 28 | 3306-051 | MUDGUARD,L FLOOR | 1 | $50.95 | |
| 29 | 3306-702 | FENDER R REAR (ORANGE) | 1 | $43.95 | |
| 29 | 3306-703 | FENDER L REAR (ORANGE) | 1 | $43.95 | |
| 30 | 2411-606 | DECAL,FENDER-REAR-RH (300 DVX) | 1 | $82.95 | |
| 30 | 2411-607 | DECAL,FENDER-REAR-LH (300 DVX) | 1 | $82.95 | |
| 31 | 3304-280 | LIGHT ASSY R HEAD | 1 | $203.95 | |
| 32 | 3304-282 | SOCKET COMP | 1 | $37.95 | |
| 33 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 34 | 3304-281 | UNIT HEAD LIGHT | 1 | $180.95 |
