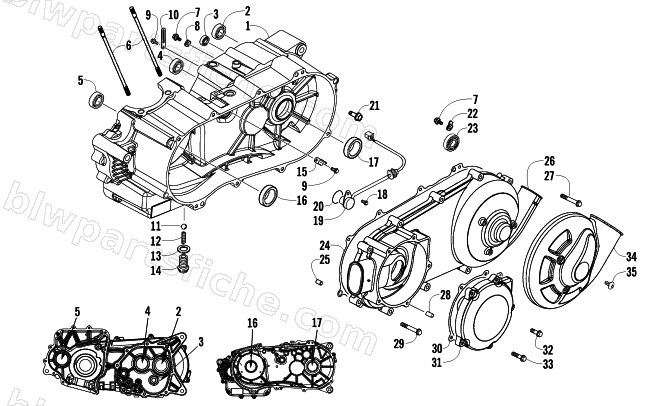

LEFT CRANKCASE AND COVER ASSEMBLY
2012 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-221 | CRANK CASE COMP L | 1 | $638.95 | |
| 2 | 3304-067 | BRG BALL 6305 | 1 | $33.95 | |
| 3 | 3304-074 | BRG NEEDLE 20*26*16 | 1 | $23.39 | |
| 4 | 3304-699 | BRG BALL RADIAL 6204 | 1 | $20.63 | |
| 5 | 3304-195 | BRG RADIAL BALL 6205 | 1 | $20.63 | |
| 6 | 3305-606 | BOLT A STUD 8MM | 1 | $6.34 | |
| 7 | 3304-005 | BOLT SPECIAL 6*10 96600-08010 N.C. | 1 | $1.50 | |
| 8 | 3304-039 | PLATE BRG HOLDER | 1 | $1.50 | |
| 9 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 10 | 3304-158 | CLIP 2*100 | 1 | $1.95 | |
| 11 | 3304-205 | BALL STEEL 12 | 1 | $1.50 | |
| 12 | 3304-063 | SPG BOLT SEAT INNER | 1 | $2.33 | |
| 13 | 3304-021 | WASHER BOLT SEAT | 1 | $0.95 | |
| 14 | 3304-109 | BOLT SEAT BALL STOPPER | 1 | $3.30 | |
| 15 | 3303-843 | CLAMPER WIRE HARNESS | 1 | $2.06 | |
| 16 | 3304-079 | OIL SEAL 27*42*7 | 1 | $16.49 | |
| 17 | 3304-091 | OIL SEAL 25*40*8 | 1 | $3.57 | |
| 18 | 3304-187 | BOLT FLANGE 6*10 | 1 | $0.81 | |
| 19 | 3304-698 | SW ASSY GEAR CHANGE | 1 | $58.95 | |
| 20 | 3305-776 | O RING 15.5X2.5 | 1 | $2.06 | |
| 21 | 3303-365 | R/B 3304-544 | 1 | $0.95 | |
| 22 | 3304-040 | PLATE BRG HOLDER | 1 | $3.02 | |
| 23 | 3304-073 | BEARING BALL RADIAL | 1 | $33.95 | |
| 24 | 3303-642 | GASKET L COVER | 1 | $58.95 | |
| 25 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 26 | 3303-632 | COVER LEFT | 1 | $252.95 | |
| 27 | 3304-003 | BOLT FLANGE SHF 6*28 | 1 | $0.65 | |
| 28 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 29 | 3304-004 | BOLT FLANGE SHF 6*40 | 1 | $0.81 | |
| 30 | 3304-101 | GASKET STARTING COVER | 1 | $10.97 | |
| 31 | 3304-225 | COVER STARTING | 1 | $74.95 | |
| 32 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 33 | 3304-190 | R/B 3305-945 | 1 | $0.65 | |
| 34 | 3304-222 | COVER L COVER | 1 | $26.95 | |
| 35 | 3304-407 | SCREW PAN 6*12 | 1 | $1.78 |
