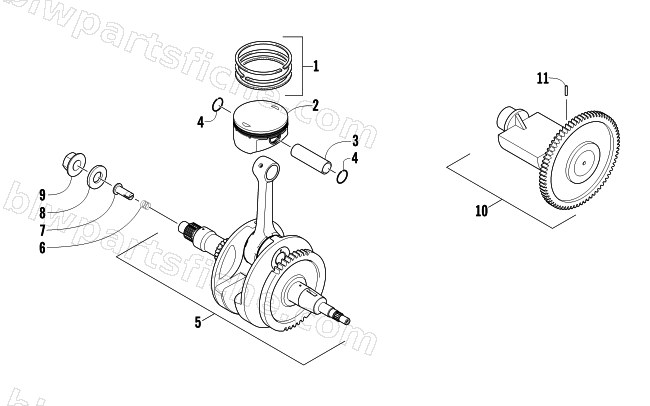

PISTON AND CRANKSHAFT ASSEMBLY
2012 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-664 | RING SET PISTON | 1 | $79.95 | |
| 2 | 3305-625 | PISTON | 1 | $64.95 | |
| 3 | 3305-623 | PIN PISTON | 1 | $16.49 | |
| 4 | 3304-159 | CLIP PISTON PIN 17MM | 1 | $1.78 | |
| 5 | 3305-619 | CRANK SHAFT COMP | 1 | $1,075.95 | |
| 6 | 3303-694 | SPG OIL THROUGH | 1 | $3.16 | |
| 7 | 3303-693 | OIL THROUGH | 1 | $5.51 | |
| 8 | 3304-036 | WASHER THRUST 14*28*2 | 1 | $1.50 | |
| 9 | 3304-024 | NUT,FLANGE 14MM | 1 | $2.33 | |
| 10 | 3305-624 | SHAFT,COMP BALANCER | 1 | $180.95 | |
| 11 | 3304-439 | ROLLER 4*8 | 1 | $1.23 |
