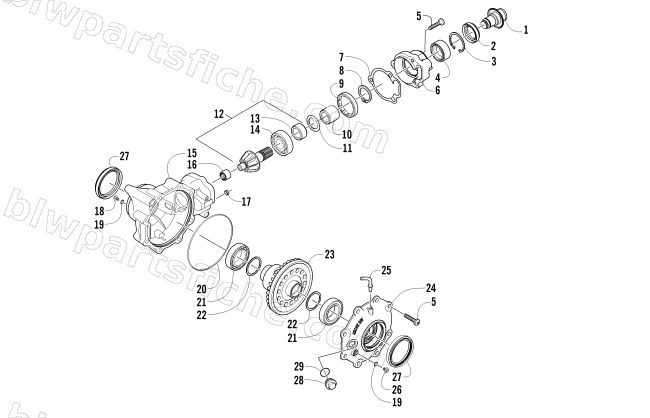

FRONT DRIVE GEARCASE ASSEMBLY
2012 350 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3306-434 | GEARCASE,FRONT (3.1)-ASSEMBLY | 1 | $2,433.95 | |
| 1 | 3306-047 | SHAFT INPUT ASSEMBLY | 1 | $94.95 | |
| 2 | 3323-239 | SEAL | 1 | $5.65 | |
| 3 | 3306-046 | RING RETAINING | 1 | $4.54 | |
| 4 | 3323-240 | BEARING,BALL-DOUBLE ROW | 1 | $94.95 | |
| 5 | 3303-615 | BOLT FLANGE 8*40 | 1 | $1.78 | |
| 6 | 3306-049 | HOUSING PINION-MACH | 1 | $47.95 | |
| 7 | 3323-234 | GASKET,FLANGE | 1 | $3.16 | |
| 8 | 3306-045 | RING RETAINING | 1 | $3.44 | |
| 9 | 3313-788 | COLLAR LOCK M64*1.5LH | 1 | $42.95 | |
| 10 | 3306-044 | COLLAR SHAFT SPLINED | 1 | $33.95 | |
| 11 | 3306-043 | WASHER WAVE SPRING | 1 | $2.61 | |
| 12 | 3306-039 | PINION(11 TOOTH)-ASSEMBLY | 1 | $196.95 | |
| 13 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 14 | 3306-040 | BRG BALL RADIAL 6305 | 1 | $26.95 | |
| 15 | 3313-793 | HOUSING GEARCASE-FRT MACH | 1 | $371.95 | |
| 16 | 3306-038 | BEARING NEEDLE | 1 | $47.95 | |
| 17 | 3306-048 | PIN DOWEL | 1 | $4.54 | |
| 18 | 3306-027 | PLUG DRAIN MAG | 1 | $20.63 | |
| 19 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 20 | 3306-030 | O-RING 150*2MM | 1 | $3.16 | |
| 21 | 3306-026 | R/B 3306-801 | 1 | $69.95 | |
| 22 | 3306-132 | SHIM 41*49*1.0 | 1 | $5.65 | |
| 22 | 3306-133 | SHIM 41*49*1.1 | 1 | $5.65 | |
| 22 | 3306-134 | SHIM 41*49*1.2 | 1 | $5.65 | |
| 22 | 3306-135 | SHIM 41*49*1.3 | 1 | $5.65 | |
| 22 | 3306-136 | SHIM 41*49*1.4 | 1 | $24.77 | |
| 22 | 3306-137 | SHIM 41*49*1.5 | 1 | $5.65 | |
| 22 | 3306-138 | SHIM 41*49*1.6 | 1 | $5.65 | |
| 22 | 3306-139 | SHIM 41*49*1.7 | 1 | $5.65 | |
| 23 | 3313-794 | GEAR(34 TOOTH 3.1)-WELDMENT | 1 | $638.95 | |
| 24 | 3313-795 | COVER GEARCASE-FR MACH | 1 | $69.95 | |
| 25 | 3306-034 | BARB 90 DEG | 1 | $6.89 | |
| 26 | 3306-036 | PLUG OIL LEVEL | 1 | $10.97 | |
| 27 | 3306-025 | OIL SEAL 48*84*9 | 1 | $50.95 | |
| 28 | 3306-035 | PLUG FILL | 1 | $30.95 | |
| 29 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 |
