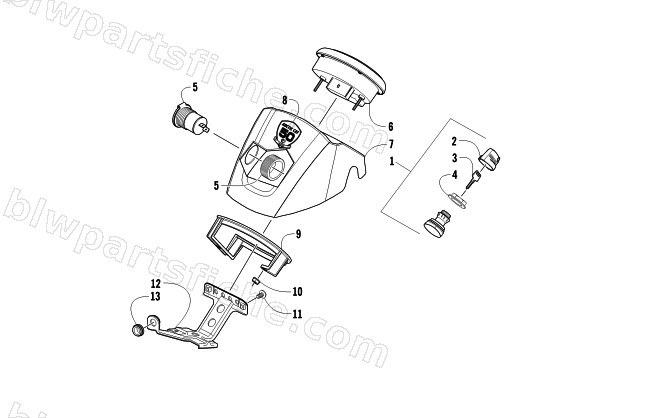

2012 Arctic Cat 425 CR SE — INSTRUMENT POD ASSEMBLY
2012 425 CR SE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-439 | SWITCH,IGNITION-OFF/ON/LIGHTS | 1 | $64.95 | |
| 2 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 3 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 4 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 5 | 3313-468 | OUTLET,ACCESSORY-12V DC | 1 | $33.95 | |
| 6 | 0520-138 | GAUGE,LCD-CAN (012 425 i CR) | 1 | $525.95 | |
| 7 | 3306-660 | COVER HANDLEBAR (BLACK DIAMOND) | 1 | $66.95 | |
| 7 | 3306-278 | COVER,HANDLEBAR (BLACK) | 1 | $26.95 | |
| 8 | 9611-399 | DECAL,EMBLEM-50TH ANNIVERSARY-CHROME | 1 | $32.95 | |
| 9 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 10 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 11 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 12 | 3306-277 | STAY,HANDLE COVER | 1 | $16.49 | |
| 13 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 |
