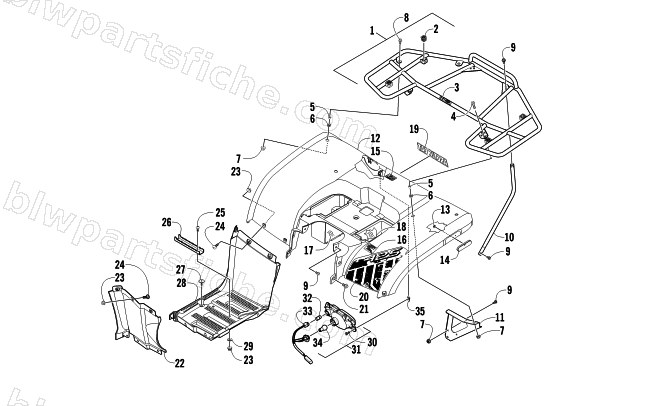

2012 Arctic Cat 425 CR SE — REAR BODY, RACK, AND TAILLIGHT ASSEMBLY
2012 425 CR SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-373 | RACK,REAR-ASSEMBLY | 1 | $324.95 | |
| 2 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 3 | 1411-682 | DECAL,WARNING RACK (150LB) | 1 | $17.87 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 8 | 3313-522 | BOLT,M8*25 | 1 | $1.78 | |
| 9 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 10 | 3313-449 | TUBE,MOUNT-RACK-REAR-PAINTED | 1 | $30.95 | |
| 11 | 3313-352 | BRACKET,RACK MOUNT-PAINTED BLACK(RH) | 1 | $13.73 | |
| 11 | 3313-353 | BRACKET,RACK MOUNT-PAINTED BLACK(LH) | 1 | $13.73 | |
| 12 | 3313-768 | FENDER,REAR-BLACK DIAMOND-W/DECALS | 1 | $486.95 | |
| 12 | 3306-305 | FENDER,REAR (RED) W/DECALS | 1 | $366.95 | |
| 12 | 3306-669 | FENDER REAR W/DECALS (SILVER CRYSTAL) | 1 | $690.95 | |
| 13 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 14 | 3313-360 | REFLECTOR,REAR (OVAL) | 1 | $13.73 | |
| 15 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 16 | 1411-893 | DECAL,TIRE PRESSURE | 1 | $26.95 | |
| 17 | 3313-362 | SHIELD,RH | 1 | $10.97 | |
| 18 | 3313-363 | SHIELD,LH | 1 | $10.97 | |
| 19 | 2411-501 | DECAL,FRONT-"ARCTIC CAT" (350/425) | 1 | $10.97 | |
| 20 | 2411-642 | DECAL,FENDER-REAR-MET BLACK-RH (425 CR) | 1 | $58.95 | |
| 20 | 2411-643 | DECAL,FENDER-REAR-MET BLACK-LH (425 CR) | 1 | $58.95 | |
| 20 | 2411-624 | DECAL,FENDER-REAR-RED-RH (425 CR) | 1 | $58.95 | |
| 20 | 2411-625 | DECAL,FENDER-REAR-RED-LH (425 CR) | 1 | $58.95 | |
| 20 | 2411-628 | DECAL,FENDER-REAR-TM-RH (425 CR) | 1 | $58.95 | |
| 20 | 2411-629 | DECAL,FENDER-REAR-TM-LH (425 CR) | 1 | $58.95 | |
| 21 | 3305-783 | BOLT WASHER 8*16 | 1 | $3.02 | |
| 22 | 3313-760 | FOOTWELL FRONT-RH | 1 | $47.95 | |
| 22 | 3313-668 | FOOTWELL,FRONT-LH | 1 | $30.95 | |
| 23 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 24 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 25 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 26 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 27 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 28 | 3313-762 | FOOTWELL REAR RH | 1 | $82.95 | |
| 28 | 3313-763 | FOOTWELL REAR LH | 1 | $82.95 | |
| 29 | 3305-852 | WASHER,PLAIN 6MM | 1 | $0.81 | |
| 30 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 31 | 3313-382 | ASSY,TAILLIGHT - RH (SAE) | 1 | $102.95 | |
| 31 | 3313-383 | ASSY,TAILLIGHT - LH (SAE) | 1 | $102.95 | |
| 32 | 3313-508 | BULB,BACKUP(R5W -12V 5W) (CLEAR) | 1 | $6.75 | |
| 33 | 3313-499 | ASSY, SOCKET-TAILLIGHT (SAE) | 1 | $47.95 | |
| 34 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 35 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 |
