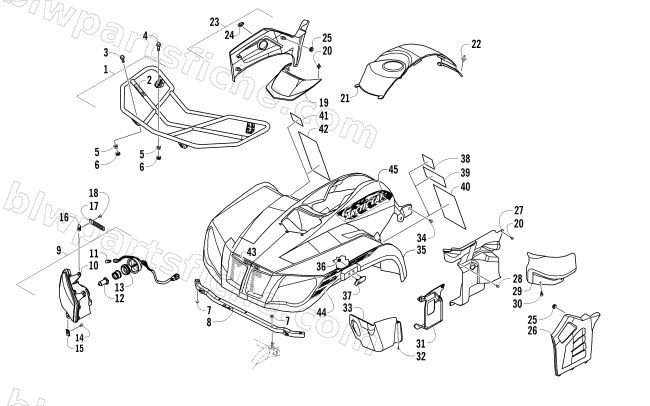

2012 Arctic Cat 425 CR — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2012 425 CR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-330 | RACK,FRONT | 1 | $227.95 | |
| 2 | 1411-681 | DECAL,WARNING RACK (75LB) | 1 | $19.25 | |
| 3 | 3313-522 | BOLT,M8*25 | 1 | $1.78 | |
| 4 | 3313-713 | BOLT,FLANGE 8*50 | 1 | $3.02 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 8 | 3306-331 | TUBE,REAR MOUNT-FRONT RACK | 1 | $33.95 | |
| 9 | 3306-268 | LIGHT ASS'Y R HEAD | 1 | $205.95 | |
| 9 | 3306-269 | LIGHT ASS'Y L HEAD | 1 | $205.95 | |
| 10 | 3306-270 | UNIT HEAD LIGHT R | 1 | $180.95 | |
| 10 | 3306-271 | UNIT HEAD LIGHT L | 1 | $180.95 | |
| 11 | 3303-847 | BULB POSITION LIGHT 12V5W | 1 | $5.65 | |
| 12 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 13 | 3306-272 | SOCKET COMP | 1 | $30.95 | |
| 14 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 15 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 16 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 17 | 3304-157 | CLIP 2*70 | 1 | $1.92 | |
| 18 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 19 | 3306-404 | ACCESS PANEL,ELECTRIC (BLACK) | 1 | $13.73 | |
| 20 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 21 | 3306-397 | COVER,TANK (MARSH) | 1 | $13.73 | |
| 21 | 3306-674 | COVER TANK (BLACK) | 1 | $30.95 | |
| 22 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 23 | 3313-857 | PANEL,SIDE-RH-ASSY | 1 | $66.95 | |
| 24 | 3306-307 | CAP, SIDE COVER | 1 | $3.44 | |
| 25 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 26 | 3313-667 | PANEL,SIDE-LH | 1 | $79.95 | |
| 27 | 3306-284 | PANEL,SPLASH RIGHT | 1 | $20.63 | |
| 27 | 3306-285 | PANEL SPLASH LEFT | 1 | $20.63 | |
| 28 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 29 | 3313-844 | PROTECTOR HOSE | 1 | $16.49 | |
| 30 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 31 | 3306-286 | PANEL FRONT,SPLASH RIGHT | 1 | $33.95 | |
| 31 | 3306-287 | PANEL ASSY,SPLASH LEFT | 1 | $32.95 | |
| 32 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 33 | 3313-754 | SHIELD LINKAGE | 1 | $13.73 | |
| 34 | 3305-783 | BOLT WASHER 8*16 | 1 | $3.02 | |
| 35 | 3306-399 | FENDER,FRONT-W/DECALS (MARSH) | 1 | $567.95 | |
| 35 | 3306-676 | FENDER FRONT-W/DECALS (BLACK) | 1 | $567.95 | |
| 36 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 37 | 3313-359 | REFLECTOR,FRONT (OVAL) | 1 | $13.73 | |
| 38 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 39 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 40 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 41 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 42 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 43 | 2411-501 | DECAL,FRONT-"ARCTIC CAT" (350/425) | 1 | $10.97 | |
| 44 | 2411-618 | DECAL,FENDER-FRONT-RH (350/425 CR) | 1 | $58.95 | |
| 44 | 2411-619 | DECAL,FENDER-FRONT-LH (350/425 CR) | 1 | $58.95 | |
| 44 | 2411-630 | DECAL,FENDER-FRONT-BLACK-RH (350/425 CR) | 1 | $58.95 | |
| 44 | 2411-631 | DECAL,FENDER-FRONT-BLACK-LH (350/425 CR) | 1 | $58.95 | |
| 45 | 2411-826 | DECAL,SIDE-MARSH-RH (350/425) | 1 | $33.95 | |
| 45 | 2411-827 | DECAL,SIDE-MARSH-LH (350/425) | 1 | $33.95 | |
| 45 | 2411-632 | DECAL,SIDE-BLACK-RH (350/425) | 1 | $19.25 | |
| 45 | 2411-633 | DECAL,SIDE-BLACK-LH (350/425) | 1 | $19.25 |
