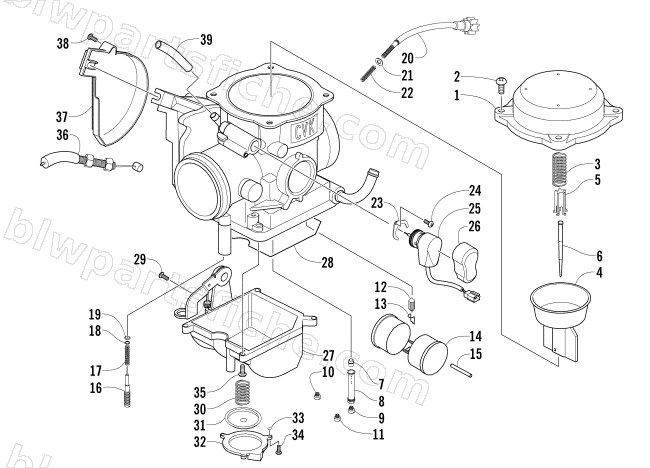

CARBURETOR

2012 650

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	0470-882	CARB,CVK 36-AE (2010 650 B-BODY)	1	$899.95
1	5507-001	COVER, TOP	1	$66.95
2	5507-002	SCREW, TOP COVER	1	$0.40
3	5507-066	SPRING	1	$6.47
4	5507-099	PISTON,VACUUM	1	$140.95
5	5507-005	SPRING SEAT	1	$3.16
6	5507-201	JET NEEDLE	1	$26.95
7	5507-007	NEEDLE JET	1	$26.95
8	5507-047	HOLDER, NEEDLE- JET	1	$26.95
9	5507-075	JET, MAIN-132	1	$13.73
9	5507-072	JET, MAIN-125	1	$13.73
9	5507-073	JET, MAIN-128	1	$13.73
9	5507-074	JET, MAIN-130	1	$13.73
9	5507-057	MAIN, JET(135)	1	$16.49
9	5507-076	JET, MAIN-138	1	$13.73
9	5507-043	MAIN JET 142	1	$16.49
9	5507-042	MAIN JET 145	1	$16.49
9	5507-041	MAIN JET 148	1	$16.49
9	5507-009	MAIN JET 150	1	$16.49
9	5507-077	JET, MAIN-152	1	$13.73
9	5507-078	JET, MAIN-155	1	$13.73
10	5507-070	JET, SLOW #40	1	$20.63
11	5507-112	STARTER/MAIN JET 85	1	$20.63
12	5507-183	FLOAT VALVE SET	1	$37.95
14	5507-039	FLOAT SET	1	$37.95
16	5507-213	PILOT SCREW SET	1	$26.95
20	5507-027	STOP SCREW COMP.	1	$122.95
21	5507-028	WASHER	1	$0.40
22	5507-029	SPRING	1	$5.92
23	5507-115	PLATE	1	$17.87
24	5507-117	SCREW	1	$1.23
25	5507-204	AUTO BY-ST-ASS'Y	1	$292.95
26	5507-114	COVER	1	$66.95
28	5507-067	O-RING, FLOAT CHAMBER	1	$16.49
29	5507-050	SCREW, DRAIN	1	$3.02
30	5507-211	SPRING	1	$6.75
31	5507-197	DIAPHRAGM	1	$42.95
32	5507-198	PUMP HOUSING	1	$20.63
33	5507-034	U RING	1	$3.02
34	5507-035	SCREW	1	$1.23
35	5507-017	SCREW	1	$7.30
36	0487-049	CABLE,THROTTLE	1	$69.95
37	5507-036	COVER	1	$4.95
38	5507-037	SCREW(TOP COVER)	1	$0.95
39	0410-070	HOSE,FUEL-25 FT (0419-272 CTL)	1	$66.95
