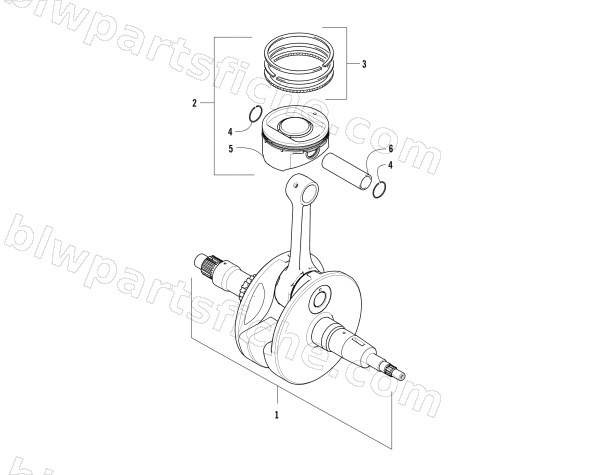

2012 Arctic Cat 650 — CRANKSHAFT AND PISTON ASSEMBLY
2012 650
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-326 | CRANKSHAFT,FINAL-ASSEMBLY-85-(N1 GREEN) | 1 | $1,085.95 | |
| 2 | 0805-035 | PISTON, SET ASSY, 650 | 1 | $220.95 | |
| 3 | 0805-011 | RING SET, PISTON, 650 | 1 | $181.95 | |
| 4 | 0831-001 | CIRCLIP, PISTON PIN | 1 | $17.95 | |
| 6 | 0805-012 | PIN, PISTON | 1 | $42.95 |
