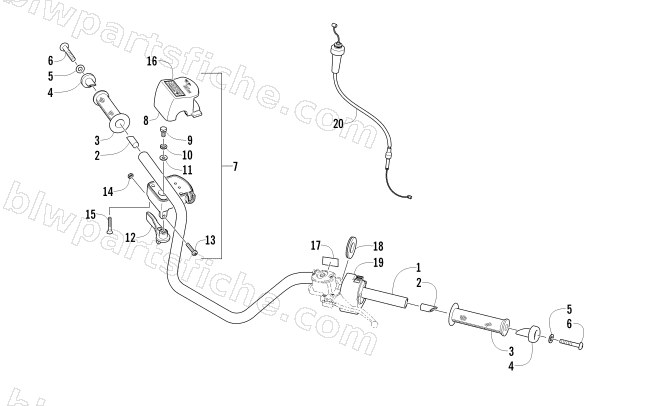

2012 Arctic Cat 700 DIESEL — HANDLEBAR ASSEMBLY
2012 700 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-418 | HANDLE BAR-BLACK | 1 | $30.95 | |
| 2 | 0405-218 | PLUG,HANDLEBAR | 1 | $20.63 | |
| 3 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 4 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 5 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 6 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 7 | 0509-054 | RHCA,2WD/4WD/D-L/K(010 ATV) | 1 | $203.95 | |
| 8 | 0409-141 | SWITCH,2WD/4WD WITH D-L/K (2010 FIS) | 1 | $114.95 | |
| 9 | 3007-392 | BOLT | 1 | $3.95 | |
| 10 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 11 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 12 | 0409-133 | LEVER,THROTTLE (010 FIS) | 1 | $52.95 | |
| 13 | 3423-014 | SCREW,5MM | 1 | $2.06 | |
| 14 | 3423-327 | NUT,5MM | 1 | $2.33 | |
| 15 | 3423-199 | SCREW, 5X30 | 1 | $1.78 | |
| 16 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 17 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 18 | 3409-019 | COVER, DUST | 1 | $2.61 | |
| 19 | 0409-083 | CONTROL,LH ASS'Y (07 LD686) | 1 | $180.95 | |
| 20 | 0487-044 | CABLE,THROTTLE | 1 | $69.95 |
