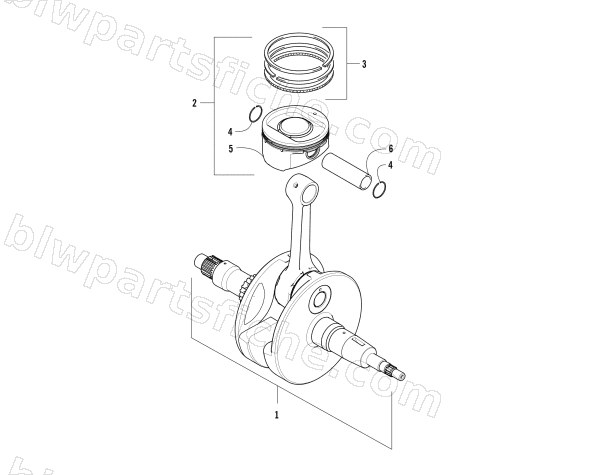

2012 Arctic Cat 700 LTD — CRANKSHAFT AND PISTON ASSEMBLY
2012 700 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-326 | CRANKSHAFT,FINAL-ASSEMBLY-85-(N1 GREEN) | 1 | $1,085.95 | |
| 2 | 0805-297 | PISTON,102MM,SET ASSY | 1 | $268.95 | |
| 3 | 0805-132 | RING SET,PISTON-A700 | 1 | $197.95 | |
| 4 | 0831-001 | CIRCLIP, PISTON PIN | 1 | $17.95 | |
| 6 | 0805-210 | PIN,PISTON, OD23 X L54 | 1 | $105.95 |
