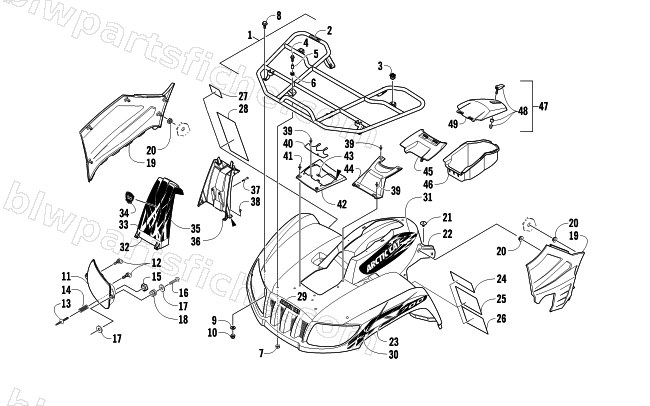

2012 Arctic Cat 700 MUD PRO — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2012 700 MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-106 | RACK,FRONT W/FENCE-ASSEMBLY | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-300 | PANEL,SIDE-RH (A-BODY) | 1 | $66.95 | |
| 19 | 2406-419 | PANEL,SIDE-LH (650H1) | 1 | $66.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 22 | 2516-132 | FENDER,ASSY-FR-APPLE GREEN METALLIC | 1 | $1,112.95 | |
| 23 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 23 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 24 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 25 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 26 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 27 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 28 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 29 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 30 | 2411-838 | DECAL,FENDER-FRONT-GM-RH (700 MUD PRO) | 1 | $20.63 | |
| 30 | 2411-839 | DECAL,FENDER-FRONT-GM-LH (700 MUD PRO) | 1 | $20.63 | |
| 31 | 2411-840 | DECAL,SIDE-GM-RH (700 MUD PRO) | 1 | $33.95 | |
| 31 | 2411-841 | DECAL,SIDE-GM-LH (700 MUD PRO) | 1 | $33.95 | |
| 32 | 4506-301 | COVER,SNORKEL FRONT-M.BLACK-PTD | 1 | $140.95 | |
| 33 | 2411-866 | DECAL,SNORKEL-GM-FRONT | 1 | $15.11 | |
| 34 | 9611-603 | DECAL,EMBLEM-50TH ANNIVERSARY-GRN | 1 | $32.95 | |
| 35 | 2411-867 | DECAL,SNORKEL-GM-LH | 1 | $15.11 | |
| 36 | 4506-306 | COVER,SNORKEL REAR-M.BLACK-PTD | 1 | $74.95 | |
| 37 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 38 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 39 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 40 | 2416-100 | SHIELD,SPLASH | 1 | $10.97 | |
| 41 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 42 | 2516-170 | COVER,RADIATOR ACCESS-ROUTED | 1 | $33.95 | |
| 43 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 44 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 45 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 46 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 47 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 48 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 49 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 |
