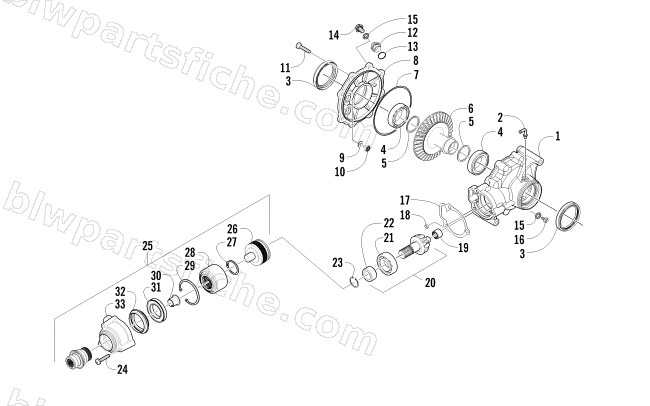

REAR DRIVE GEARCASE ASSEMBLY
2012 700 MUD PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-880 | GRCASE,REAR-ASSY(3.1-H2-PTL) RB:2502-092 | 1 | $3,373.95 | |
| 1 | 1502-896 | HOUSING,GEARCASE-REAR MACH | 1 | $283.95 | |
| 2 | 1402-442 | BARB, 90 DEGREE | 1 | $20.63 | |
| 3 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 4 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 5 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 5 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 5 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 5 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 5 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 6 | 1402-033 | GEAR, REAR (34 TOOTH) | 1 | $365.95 | |
| 7 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 8 | 1502-897 | COVER,GEARCASE-REAR MACH | 1 | $126.95 | |
| 9 | 0402-429 | SHIM,6.3X18X1.3 | 1 | $10.97 | |
| 9 | 0402-430 | SHIM,6.3X18X1.4 | 1 | $12.35 | |
| 9 | 0402-431 | SHIM,6.3X18X1.5 | 1 | $12.35 | |
| 9 | 0402-432 | SHIM,6.3X18X1.6 | 1 | $10.97 | |
| 9 | 0402-433 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 10 | 0402-326 | BUTTON,THRUST | 1 | $6.34 | |
| 11 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 12 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 13 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 14 | 1402-211 | PLUG, OIL LEVEL | 1 | $20.63 | |
| 15 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 16 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 17 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 18 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 19 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 20 | 1502-851 | GEAR,PINION (11T) SUBASSEMBLY | 1 | $220.95 | |
| 21 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 22 | 1402-977 | COLLAR,RETAINING | 1 | $49.95 | |
| 23 | 1423-067 | RING,RETAINING-INTL-65mm (DHO-62 ST ZDL) | 1 | $2.06 | |
| 24 | 0423-834 | SCREW,SELF TAP-TSPH M8-1.25 X 78 | 1 | $9.59 | |
| 25 | 1502-829 | HOUSING,INPUT-ASSY (680 PTL FML) | 1 | $1,267.95 | |
| 26 | 1502-564 | CARTRIDGE,CLUTCH | 1 | $599.95 | |
| 27 | 0423-799 | RING,RETAINING,EXTERNAL-PTL | 1 | $27.95 | |
| 28 | 1402-682 | BASKET,CLUTCH | 1 | $100.95 | |
| 29 | 0423-798 | RING,RETAINING,INTERNAL 68MM-PTL | 1 | $23.39 | |
| 30 | 1402-678 | BEARING,FLANGE,20X23X21.5-PTL | 1 | $30.95 | |
| 31 | 1402-677 | BEARING,BALL,16008 C3 40X68X9-PTL | 1 | $49.95 | |
| 32 | 1402-687 | SEAL,DUAL LIP,45X55X7 TC-PTL | 1 | $32.95 | |
| 33 | 1502-285 | HOUSING,INPUT-MACH | 1 | $231.95 |
