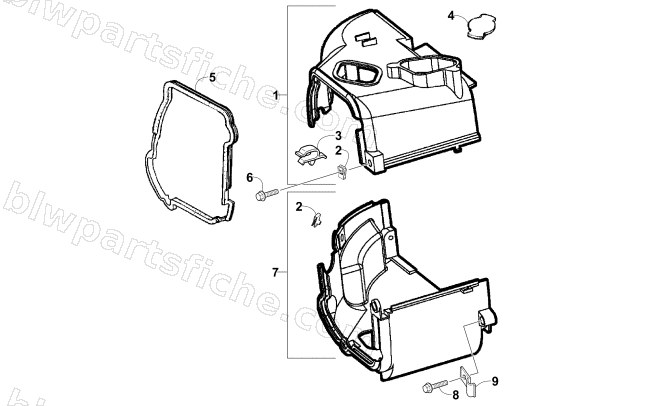

ENGINE SHROUD ASSEMBLY
2012 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-803 | SHROUD ASSY B | 1 | $26.95 | |
| 2 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 3 | 3305-804 | CLIP VACUUM TUBE | 1 | $3.16 | |
| 4 | 3303-408 | GROMMET SHROUD B | 1 | $2.33 | |
| 5 | 3303-077 | SEAL SHROUD | 1 | $16.49 | |
| 6 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 7 | 3303-078 | SHROUD ASSY A | 1 | $26.95 | |
| 8 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 9 | 3304-640 | CLAMPER CARB DRAIN TUBE | 1 | $2.95 |
