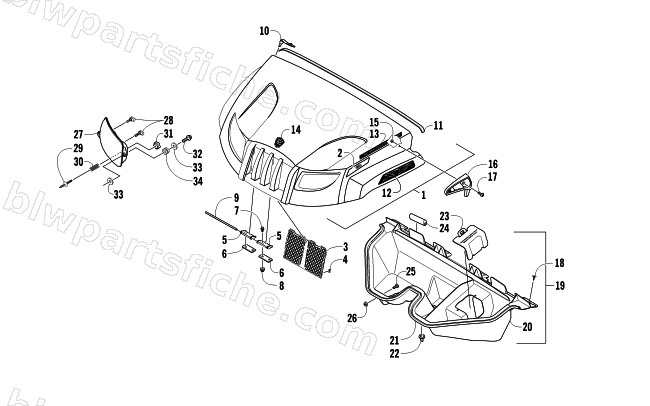

HOOD AND HEADLIGHT ASSEMBLY
2012 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-489 | HOOD,N.BLUE-RTD-ASSY | 1 | $945.95 | |
| 1 | 4506-488 | HOOD,ARCTIC ICE-RTD-ASSY | 1 | $945.95 | |
| 2 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 2 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 3 | 1406-733 | GRILL, SCREEN-BLACK | 1 | $26.95 | |
| 4 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 5 | 2516-606 | BRACKET,HOOD HINGE-PTD BLK | 1 | $17.87 | |
| 7 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 1406-915 | PIN,HOOD | 1 | $13.73 | |
| 10 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 11 | 0417-013 | SEAL,HOOD | 1 | $6.89 | |
| 12 | 2411-770 | DECAL,FENDER-FRONT-VB-RH (XT 550) | 1 | $17.87 | |
| 12 | 2411-771 | DECAL,FENDER-FRONT-VB-LH (XT 550) | 1 | $17.87 | |
| 12 | 2411-768 | DECAL,FENDER-FRONT-TM-RH (XT 550) | 1 | $50.95 | |
| 12 | 2411-769 | DECAL,FENDER-FRONT-TM-LH (XT 550) | 1 | $50.95 | |
| 13 | 2411-755 | DECAL,HOOD-PROWLER | 1 | $10.97 | |
| 14 | 9611-399 | DECAL,EMBLEM-50TH ANNIVERSARY-CHROME | 1 | $32.95 | |
| 15 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 16 | 2416-512 | LOUVER,HOOD-RH | 1 | $42.95 | |
| 16 | 2416-513 | LOUVER,HOOD-LH | 1 | $42.95 | |
| 17 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 18 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 19 | 4506-037 | BOX,STORAGE-UNDER HOOD (ASSY) | 1 | $244.95 | |
| 20 | 2416-520 | BOX,STORAGE-UNDER HOOD | 1 | $833.95 | |
| 21 | 1406-946 | SEAL STORAGE BOX | 1 | $79.95 | |
| 22 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 23 | 1406-944 | COVER,ACCESS-MASTER CYLINDER | 1 | $26.95 | |
| 24 | 0417-014 | TRIM,EDGE-RUBBER-2" | 1 | $3.30 | |
| 25 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 26 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 27 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 27 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 28 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 29 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 30 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 31 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 32 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 33 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 34 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 |
