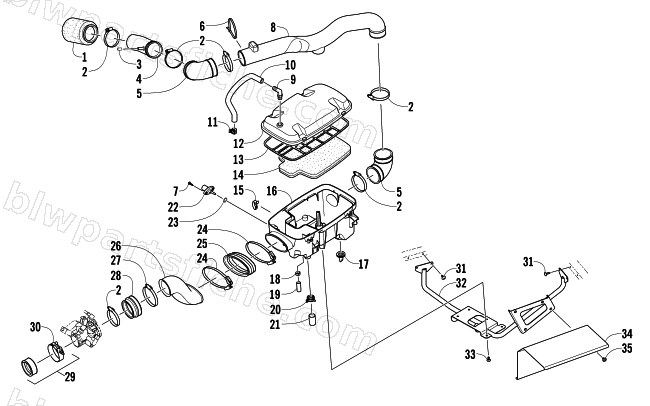

AIR INTAKE ASSEMBLY
2012 PROWLER 700 HDX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-834 | FILTER, DUST | 1 | $47.95 | |
| 2 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 3 | 1423-050 | CAP,VINYL.300"X1/2"-BLACK | 1 | $2.19 | |
| 4 | 0513-043 | DUCT,INTAKE-CLUTCH-ROUTED | 1 | $47.95 | |
| 5 | 0413-098 | BOOT,AIR DUCT | 1 | $16.49 | |
| 6 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 7 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 8 | 0470-900 | DUCT,INTAKE | 1 | $54.95 | |
| 9 | 0470-881 | FITTING,ELBOW-1/4 NPT X1/2 HB (NYLON) | 1 | $3.57 | |
| 10 | 0410-226 | HOSE,VENT-CRANKCASE | 1 | $17.87 | |
| 11 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 12 | 0470-861 | R/B 1470-220 | 1 | $99.95 | |
| 13 | 0470-560 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 14 | 0470-558 | FILTER,AIR | 1 | $42.95 | |
| 15 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 16 | 0570-327 | AIR BOX,BOTTOM-W/ 4 INSERTS (EFI) | 1 | $235.95 | |
| 17 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 18 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 19 | 0470-863 | CAP,DRAIN-AIRBOX | 1 | $2.06 | |
| 20 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 21 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 22 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 23 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 24 | 1423-074 | CLAMP,DUCT | 1 | $17.87 | |
| 25 | 0470-906 | BOOT,INTAKE-OVAL-LRG | 1 | $10.97 | |
| 26 | 0470-901 | RUNNER,INTAKE | 1 | $54.95 | |
| 27 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 28 | 0470-907 | BOOT,INTAKE-ROUND | 1 | $12.95 | |
| 29 | 0437-069 | KIT,SERVICE- INTAKE BOOT W/ CLAMP | 1 | $20.63 | |
| 30 | 1423-041 | CLAMP,MANIFOLD-T-BOLT | 1 | $20.63 | |
| 31 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 32 | 2516-706 | MOUNT, AIR BOX - PTD BLACK | 1 | $129.95 | |
| 33 | 8468-612 | SCREW,MACH-TSPNH M5X0.8X20 CL8.8 BLK | 1 | $1.23 | |
| 34 | 0470-908 | SHIELD,HEAT-AIRBOX | 1 | $64.95 | |
| 35 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 |
