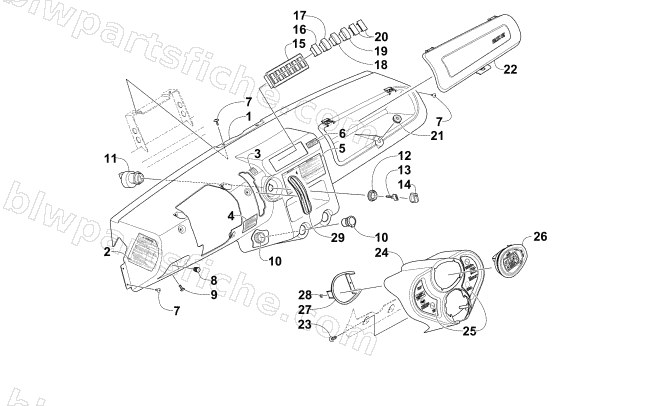

DASH ASSEMBLY
2012 PROWLER 700 HDX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-684 | PANEL,DASH-TILT/DASH SHIFT-ROUTED | 1 | $187.95 | |
| 2 | 2411-236 | DECAL,WARNING-DASH SIDE (HDX) | 1 | $17.87 | |
| 3 | 2411-560 | DECAL,CAUTION-ENGINE RPM | 1 | $3.30 | |
| 4 | 2411-311 | DECAL,STARTING INSTRUCTIONS-PARK | 1 | $13.73 | |
| 5 | 2411-881 | DECAL,WARNING-DASH-CENTER | 1 | $13.73 | |
| 6 | 1411-124 | DECAL,WARNING-DIFF LOCK | 1 | $3.30 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 1623-697 | PLUG, TUBE-1/2" | 1 | $3.57 | |
| 9 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 10 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 11 | 0430-089 | R/B 0609-936 | 1 | $72.95 | |
| 12 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 13 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 13 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 14 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 15 | 0409-142 | PANEL,SWITCH MOUNT-6 | 1 | $26.95 | |
| 16 | 0420-117 | LIGHT,INDICATOR-10S DUAL SB/P | 1 | $69.95 | |
| 17 | 0409-067 | SWITCH,LIGHTS | 1 | $56.95 | |
| 18 | 0409-061 | SWITCH, 2/4/LOCK | 1 | $33.95 | |
| 19 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 20 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 21 | 0423-541 | GROMMET,LATCH-GLOVE BOX | 1 | $4.54 | |
| 22 | 4506-420 | COVER,GLOVEBOX-BLK W/DECAL | 1 | $30.95 | |
| 23 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 24 | 2406-539 | POD, INSTRUMENT-BLACK | 1 | $100.95 | |
| 25 | 2411-292 | DECAL,WARNING DASH-RH (HDX) | 1 | $13.73 | |
| 25 | 2411-293 | DECAL,WARNING DASH-LH (HDX) | 1 | $13.73 | |
| 26 | 0520-172 | GAUGE,LCD (012 700 PRLR HDX) | 1 | $525.95 | |
| 27 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 28 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 29 | 0437-085 | KIT,SHIFT BOOT-2011 PROWLER HDX | 1 | $24.77 |
