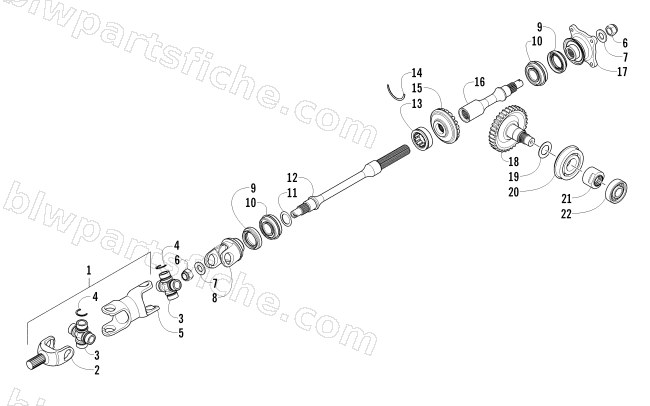

SECONDARY DRIVE ASSEMBLY

2012 TRV 1000 CRUISER

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	1502-342	DRIVESHAFT,FRONT-ASSY	1	$169.95
2	1402-701	YOKE,SLIP,25MM-MACHINED	1	$71.95
3	0402-944	CROSS, UNIVERSAL (25mm) - SET	1	$30.95
5	1502-341	DRIVESHAFT,FRONT-BLACK	1	$169.95
6	0827-013	NUT,HEX SHOULDER M16X1.5	1	$3.02
7	0828-020	WASHER, STEEL, 16.3 x 30 x 3	1	$3.30
8	1502-325	YOKE,END(25mm)-ASSEMBLY	1	$94.95
9	0830-043	SEAL,OIL-DRIVEN SHAFT	1	$6.89
10	0832-017	R/B 0832-107	1	$125.95
11	0828-021	SHIM, 25 x 34 x .25	1	$2.47
11	0828-022	SHIM, 25 x 34 x .30	1	$8.21
11	0828-023	SHIM, 25 X 34 X 0.35 MM	1	$17.87
11	0828-024	SHIM,. 25 x 34 x .90	1	$17.87
11	0828-025	SHIM, 25 x 34 x .95	1	$17.87
11	0828-026	SHIM, 25 x 34 x 1.00	1	$17.87
11	0828-027	SHIM, 25 x 34 x 1.05	1	$17.87
11	0828-028	SHIM, 25 x 34 x 1.10	1	$16.49
11	0828-029	SHIM, 25 x 34 x 1.15	1	$17.87
12	0819-089	SHAFT,SECONDARY DRIVEN-FRONT	1	$217.95
13	0832-016	BEARING, DRIVEN GEAR	1	$50.95
14	0819-011	RING, DRIVEN BEARING	1	$17.87
15	0822-106	GEAR,SECONDARY DRIVEN (GB-DN)	1	$129.95
16	0819-053	SHAFT, SECONDARY DRIVEN - REAR	1	$82.95
17	0819-005	FLANGE, OUTPUT JOINT - REAR, ASSEMBLY	1	$69.95
18	0822-132	GEAR,SECONDARY DRIVE H2-20 DEG.	1	$264.95
19	0828-119	SHIM,30 X 48 X .25	1	$5.92
19	0828-120	SHIM,30 X 48 X .30	1	$5.92
19	0828-121	SHIM,30 X 48 X .35	1	$16.49
19	0828-122	SHIM,30 X 48 X .90	1	$16.49
19	0828-123	SHIM,30 X 48 X .95	1	$16.49
19	0828-124	SHIM,30 X 48 X 1.00	1	$16.49
19	0828-125	SHIM,30 X 48 X 1.05	1	$16.49
19	0828-126	SHIM,30 X 48 X 1.10	1	$10.97
19	0828-127	SHIM,30 X 48 X 1.15	1	$19.25
20	0832-083	BEARING,6306NR-W/SNAP RING	1	$54.95
21	0827-060	NUT,SECONDARY DRIVE (H2)	1	$17.87
22	0832-050	BEARING,CONRAD-6304	1	$20.63
