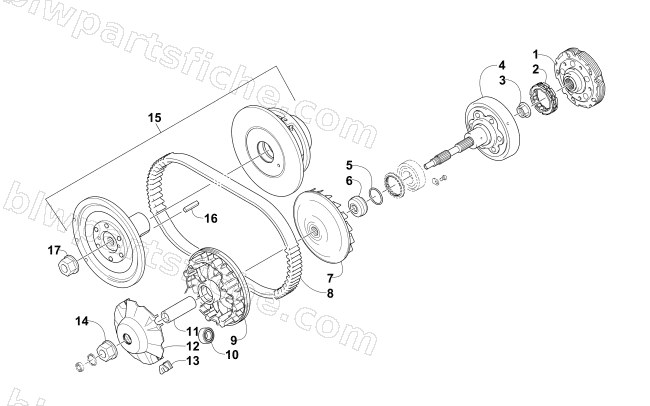

TRANSMISSION ASSEMBLY
2012 TRV 400
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0823-328 | R/B 0823-197 | 1 | $398.95 | |
| 2 | 0823-198 | CLUTCH,ONE WAY | 1 | $212.95 | |
| 3 | 0827-050 | NUT,HFH CCW (M16 X 1.5) | 1 | $12.35 | |
| 4 | 0823-200 | HOUSING,CLUTCH | 1 | $509.95 | |
| 5 | 0470-531 | O-RING,INTAKE MANIFOLD | 1 | $3.16 | |
| 6 | 0823-058 | SPACER, FIXED DRIVE FACE | 1 | $33.95 | |
| 7 | 0823-203 | FACE,FIXED DRIVE | 1 | $118.95 | |
| 8 | 0823-228 | V-BELT | 1 | $260.95 | |
| 9 | 0823-207 | FACE,MOVABLE DRIVE | 1 | $118.95 | |
| 10 | 0823-210 | ROLLER,MOVABLE DRIVEN FACE | 1 | $8.21 | |
| 11 | 0823-206 | SPACER,MOVABLE DRIVE FACE | 1 | $30.95 | |
| 12 | 0823-213 | PLATE,MOVABLE DRIVE FACE | 1 | $30.95 | |
| 13 | 0823-214 | DAMPER,MOVABLE DRIVE FACE | 1 | $20.63 | |
| 14 | 3323-165 | NUT FLANGE 16mm Z&Y | 1 | $12.35 | |
| 15 | 0823-294 | CLUTCH,DRIVEN-ASM | 1 | $824.95 | |
| 16 | 0835-018 | KEY,6X6X30 | 1 | $3.16 | |
| 17 | 0827-058 | NUT,FLANGE 16MM,DRIVE-SHAFT | 1 | $3.02 |
