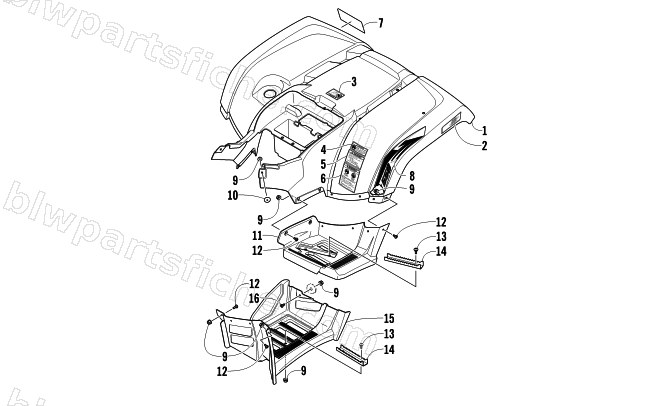

2012 Arctic Cat TRV 550 CRUISER — REAR BODY PANEL AND FOOTWELL ASSEMBLIES
2012 TRV 550 CRUISER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-315 | FENDER,REAR A.M.GREEN-ASSY(TRV) | 1 | $1,217.95 | |
| 1 | 4506-318 | FENDER,REAR ARCTIC ICE-ASSY (TRV) | 1 | $1,162.95 | |
| 2 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 2 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 3 | 1411-251 | DECAL,WARNING SEAT-PASSENGER | 1 | $12.35 | |
| 4 | 1411-269 | DECAL,WARNING PASSENGER TRV | 1 | $24.77 | |
| 5 | 2411-138 | DECAL,WARNING-TIRE PRESSURE TRV/TBX | 1 | $10.97 | |
| 6 | 2411-257 | DECAL,WARNING-PASSENGER | 1 | $6.47 | |
| 7 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 8 | 2411-734 | DECAL,FENDER-REAR-GM-RH (550 TRV) | 1 | $29.95 | |
| 8 | 2411-735 | DECAL,FENDER-REAR-GM-LH (550 TRV) | 1 | $29.95 | |
| 8 | 2411-732 | DECAL,FENDER-REAR-TM-RH (550 TRV) | 1 | $50.95 | |
| 8 | 2411-733 | DECAL,FENDER-REAR-TM-LH (550 TRV) | 1 | $50.95 | |
| 9 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 10 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 11 | 2406-042 | FOOTWELL,REAR-RH | 1 | $105.95 | |
| 11 | 2406-043 | FOOTWELL,REAR-LH | 1 | $105.95 | |
| 12 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 13 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 14 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 15 | 1506-813 | FOOTWELL,AUTO-ROUTED-RH | 1 | $105.95 | |
| 15 | 2406-471 | R/B 8506-667 | 1 | $114.95 | |
| 16 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 |
