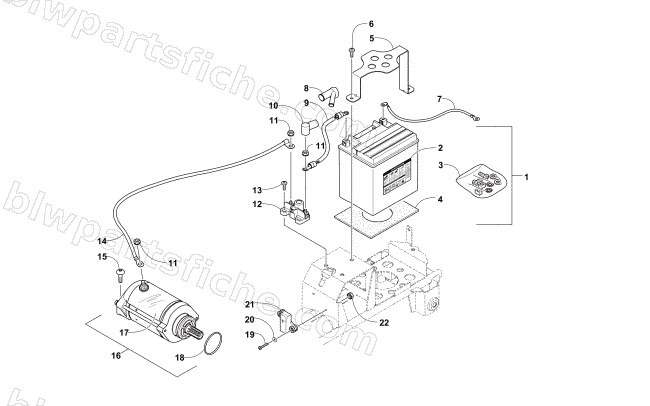

2012 Arctic Cat WILDCAT 1000 GT — BATTERY AND STARTER MOTOR ASSEMBLY
2012 WILDCAT 1000 GT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0445-115 | BATTERY,AGM-30AH-ASSY (YIX30L-BS) | 1 | $245.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 0417-022 | PAD,BATTERY | 1 | $3.71 | |
| 5 | 4506-730 | BRKT,BATTERY STRAP- PTD BLACK | 1 | $30.95 | |
| 6 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 7 | 0445-090 | CABLE,BATTERY-ENGINE(27" BLK #6 45D) | 1 | $33.95 | |
| 8 | 0445-067 | BOOT,TERMINAL-DUAL CABLE | 1 | $13.73 | |
| 9 | 0445-062 | CABLE,BATTERY-SOLENOID (8.5" RED #6) | 1 | $9.59 | |
| 10 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 0445-092 | SOLENOID,STARTER RELAY | 1 | $49.95 | |
| 13 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 14 | 0445-093 | CABLE,SOLENOID-STARTER (38" RED #6 FLAG) | 1 | $41.95 | |
| 15 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 16 | 0825-023 | R/B 0825-027 | 1 | $293.95 | |
| 17 | 0412-629 | SHIELD,HEAT (PSA) | 1 | $2.95 | |
| 18 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 | |
| 19 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 20 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 21 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 22 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 |
