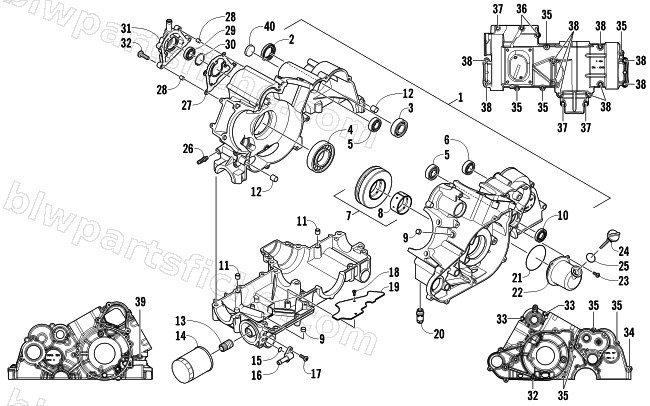

2012 Arctic Cat WILDCAT 1000 GT — CRANKCASE ASSEMBLY (ENGINE SERIAL NO. UP TO 20101689)
2012 WILDCAT 1000 GT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0801-198 | CRANKCASE REPLACEMENT-SERV PKG | 1 | $2,202.95 | |
| 2 | 0830-035 | SEAL, DRIVESHAFT | 1 | $16.49 | |
| 3 | 0832-048 | BEARING,DRIVESHAFT | 1 | $122.95 | |
| 4 | 0832-042 | BEARING,BALL-S/R 40X80X18 | 1 | $66.95 | |
| 5 | 0832-050 | BEARING,CONRAD-6304 | 1 | $20.63 | |
| 6 | 0832-049 | BEARING,CONRAD-6204 | 1 | $17.87 | |
| 7 | 0832-055 | BEARING,CRANK-SHELL ASSY | 1 | $192.95 | |
| 8 | 0832-057 | BEARING,CRANK-PLAIN | 1 | $71.95 | |
| 9 | 0801-002 | PLUG, ENGINE CASE | 1 | $3.71 | |
| 10 | 0822-052 | SEAL, COUNTER SHAFT RH | 1 | $10.97 | |
| 11 | 0829-003 | DOWEL, SPLIT, 11 x 16 | 1 | $10.97 | |
| 12 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 13 | 0812-066 | UNION,OIL FILTER (KY) | 1 | $13.73 | |
| 14 | 0812-034 | FILTER,OIL-(0812-029) | 1 | $16.49 | |
| 15 | 0830-172 | O-RING,OIL FITTING-10.72 X 2.62 | 1 | $2.61 | |
| 16 | 0812-060 | FITTING,OIL-ANGLED | 1 | $17.87 | |
| 17 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 18 | 0623-914 | SCREW,SELF TAP THD LK-TSPNH 10-24X.375 | 1 | $0.26 | |
| 19 | 0812-079 | PLATE, OIL SUMP | 1 | $10.95 | |
| 20 | 0812-052 | VALVE,OIL RELIEF ASSY,V-TWIN | 1 | $94.95 | |
| 21 | 0830-162 | O-RING,OIL FILLER COVER, VTWIN | 1 | $3.02 | |
| 22 | 0812-081 | COVER,OIL FILLER, WO/TUBE | 1 | $69.95 | |
| 24 | 0801-073 | STICK,OIL LEVEL | 1 | $26.95 | |
| 25 | 0830-010 | O-RING, 17 ID X 3.2 W | 1 | $3.44 | |
| 26 | 0812-078 | HOSE BARB,MALE,3/8 X 1/8 NPT | 1 | $10.97 | |
| 27 | 0830-191 | GASKET,BREATHER COVER | 1 | $6.47 | |
| 28 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 29 | 0832-084 | BEARING,6201, 12 X 32 X 10 | 1 | $15.11 | |
| 30 | 0831-086 | CIRCLIP,SHAFT BEARING 33 | 1 | $1.23 | |
| 31 | 0801-193 | COVER,BREATHER-ASSY | 1 | $60.95 | |
| 32 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 33 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 34 | 8412-875 | SCREW,CAP-HFH M8X1.25X75 CL8.8 RIE SIL | 1 | $17.87 | |
| 35 | 8468-660 | SCREW,MACH-TSPNH M6X1.0X60 CL8.8 BLK | 1 | $5.09 | |
| 36 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 37 | 8412-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE SIL | 1 | $9.59 | |
| 38 | 8412-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SIL | 1 | $2.54 | |
| 39 | 8412-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SIL | 1 | $1.92 | |
| 40 | 0818-103 | PLUG, CYLINDER | 1 | $8.21 |
