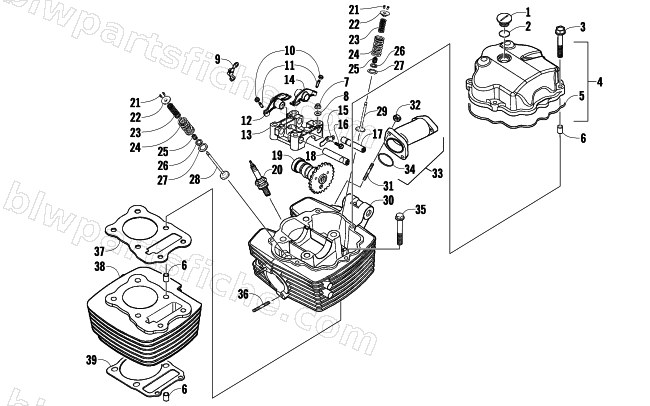

CYLINDER HEAD ASSEMBLY

2013 150 UTILITY

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3304-012	CAP ACG A.C.G.	1	$3.30
2	3304-099	O-RING 13.8*2.5	1	$2.33
3	3303-611	R/B 3307-214	1	$0.65
4	3304-914	COVER ASSY HEAD	1	$64.95
5	3304-915	PACKING CYLINDER HEAD	1	$20.63
6	3303-342	PIN DOWEL 10*16	1	$1.64
7	3303-332	NUT FLANGE 8MM	1	$0.81
8	3304-048	WASHER 8MM	1	$1.23
9	3304-923	PLATE COMP CAN	1	$13.73
10	3304-942	NUT TAPPET ADJUSTING	1	$1.23
11	3304-941	SCREW TAPPING ADJUSTING	1	$3.71
12	3304-926	ARM EX VALVE ROCKER	1	$69.95
13	3304-921	HOLDER CAM SHAFT	1	$64.95
14	3304-925	ARM VALVE ROCKER	1	$66.95
15	3304-929	SET PLATE ROCKER ARM SHAFT	1	$2.33
16	3304-944	BOLT FLANGE 6*14	1	$1.09
17	3304-927	SHAFT IN ROCKER ARM	1	$20.63
18	3304-928	SHAFT EX ROCKER ARM	1	$12.35
19	3304-922	SHAFT COMP CAM	1	$133.95
20	0217-796	SPARK PLUG-D8EA	1	$10.97
21	3304-940	COTTER VALVE	1	$10.97
22	3304-937	RETAINER VALVE SPRING	1	$12.35
23	3304-936	SPG VALVE INNER	1	$8.21
24	3304-935	SPG VALVE OUTER	1	$17.87
25	3304-920	SEAL VALVE STEM	1	$13.73
26	3304-939	SEAT VALVE SPRING INNER	1	$2.47
27	3304-938	SEAT VALVE SPG OUTER	1	$2.47
28	3304-934	VALVE EXHAUST	1	$58.95
29	3304-933	VALVE INLET	1	$33.95
30	3304-912	HEAD COMP CYLINDER	1	$405.95
31	3304-114	BOLT STUD 6*28	1	$0.95
32	3304-124	NUT HEX 6MM	1	$0.81
33	3304-916	PIPE ASSY INLET	1	$47.95
34	3304-097	O-RING 33.5*3	1	$1.50
35	3304-918	BOLT FLANGE SH M6x1.0x110	1	$1.50
36	3304-917	BOLT STUD 6*35	1	$1.09
37	3304-913	GASKET CYLINDER HEAD	1	$23.39
38	3304-910	CYLINDER COMP	1	$341.95
39	3304-911	GASKET CYLINDER	1	$13.73
