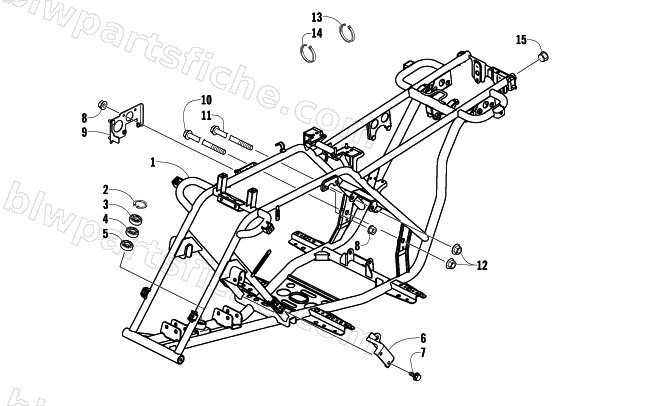

2013 Arctic Cat 150 UTILITY — FRAME AND RELATED PARTS ASSEMBLY
2013 150 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-704 | BODY COMP FRAME | 1 | $1,106.95 | |
| 2 | 3303-347 | CIR CLIP IN 32 | 1 | $2.61 | |
| 3 | 3303-295 | OIL SEAL 18*32*7 | 1 | $2.61 | |
| 4 | 3303-298 | OIL SEAL 22*35*7 | 1 | $3.02 | |
| 5 | 3303-392 | BEARING BALL RADIAL 6002 | 1 | $17.87 | |
| 6 | 3305-239 | BRKT ENG HANGER | 1 | $17.87 | |
| 7 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 8 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 9 | 3305-237 | STAY COIL & REG | 1 | $16.49 | |
| 10 | 3304-184 | BOLT FLANGE 10*160 | 1 | $5.51 | |
| 11 | 3305-705 | SCREW,CAP-HFH M10X1.25X100 | 1 | $3.57 | |
| 12 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 13 | 3303-593 | BAND HARNESS WIRE | 1 | $1.50 | |
| 14 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 | |
| 15 | 3305-242 | CAP RR GRIP END | 1 | $2.47 |
