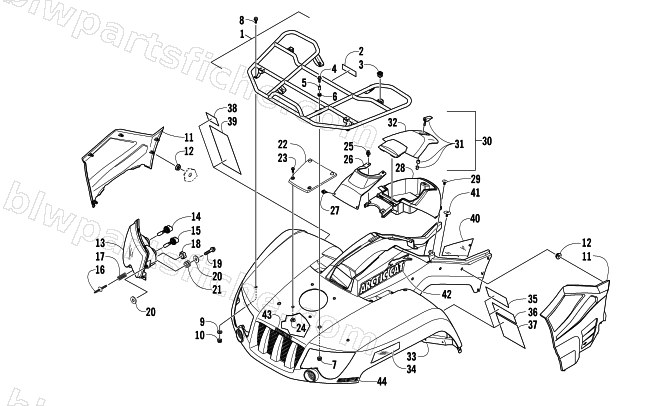

2013 Arctic Cat 500 XT — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2013 500 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-107 | RACK,FRONT W/FENCE-ASSEMBLY | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 2406-302 | PANEL,SIDE-RH | 1 | $66.95 | |
| 11 | 2416-133 | PANEL,SIDE-LH (450) | 1 | $50.95 | |
| 12 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 13 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 13 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 14 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 15 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 16 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 17 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 18 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 19 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 22 | 4506-031 | COVER,RADIATOR-N.BLUE-PTD | 1 | $47.95 | |
| 22 | 4506-378 | COVER,RADIATOR-MATTE BLK-PTD | 1 | $51.95 | |
| 23 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 24 | 0423-997 | NUT,T W/TEETH-M6 | 1 | $0.68 | |
| 25 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 26 | 2516-698 | COVER,POST STEERING-M. BLACK-RTD-PTD | 1 | $66.95 | |
| 26 | 4506-379 | COVER,POST STEERING-MATTE BLACK-PTD | 1 | $41.95 | |
| 27 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 28 | 2516-721 | BOX,STORAGE-M. BLACK-PTD | 1 | $112.95 | |
| 28 | 4506-380 | BOX,STORAGE-MATTE BLACK-PTD | 1 | $160.95 | |
| 29 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 30 | 2506-235 | COVER,STORAGE BOX-W/LATCH | 1 | $58.95 | |
| 31 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 32 | 1406-862 | COVER,STORAGE BOX | 1 | $57.95 | |
| 33 | 2516-987 | FENDER,FRONT-ASSY-N.BLUE | 1 | $1,343.95 | |
| 33 | 2516-421 | FENDER,FRONT-A. T. CAMO-ASSY | 1 | $2,086.95 | |
| 34 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 34 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 35 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 36 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 37 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 38 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 39 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 40 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 41 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 42 | 3411-034 | DECAL,SIDE-RH (A,B,CR BODY) | 1 | $42.95 | |
| 42 | 3411-035 | DECAL,SIDE-LH (A,B,CR BODY) | 1 | $42.95 | |
| 42 | 3411-242 | DECAL,SIDE-RH (A,B,CR BODY-CAMO) | 1 | $16.49 | |
| 42 | 3411-243 | DECAL,SIDE-LH (A,B,CR BODY-CAMO) | 1 | $16.49 | |
| 43 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 43 | 3411-326 | DECAL,GRAPHIC-REAR(BLACK) (MATTE) | 1 | $17.87 | |
| 44 | 3411-264 | DECAL,EFI | 1 | $12.35 | |
| 44 | 3411-320 | DECAL,EFI (FLAT) | 1 | $13.73 |
