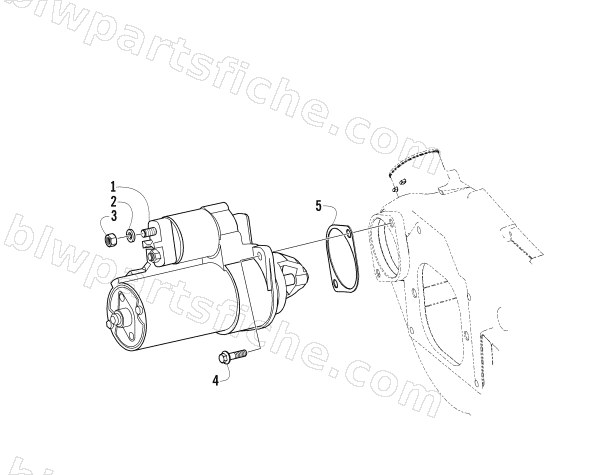

2013 Arctic Cat 700 DIESEL — STARTER MOTOR ASSEMBLY
2013 700 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-319 | STARTER MOTOR | 1 | $1,485.95 | |
| 2 | 3206-322 | WASHER DIAM. 8 | 1 | $1.50 | |
| 3 | 3206-321 | NUT M 8 | 1 | $4.95 | |
| 4 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 5 | 1402-525 | GASKET,STARTER | 1 | $5.51 |
