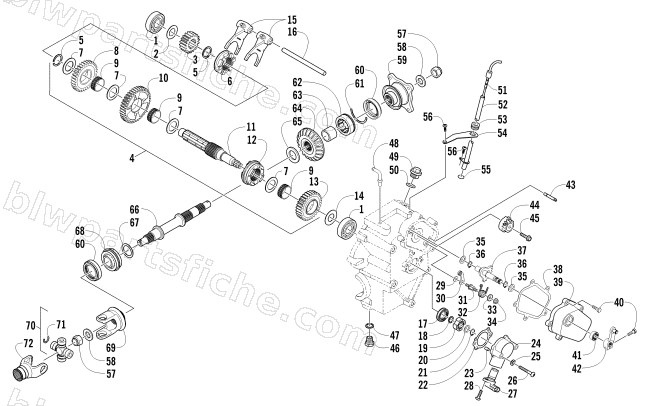

TRANSMISSION LEFT-SIDE ASSEMBLY
2013 700 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0832-050 | BEARING,CONRAD-6304 | 1 | $20.63 | |
| 2 | 0828-010 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $6.34 | |
| 3 | 0822-140 | GEAR,DRIVE 18T-13T SPLINE | 1 | $165.95 | |
| 4 | 0822-124 | R/B 0822-144 | 1 | $1,405.95 | |
| 5 | 0831-085 | CIRLCLIP,CE-SHAFT-EXTERNAL | 1 | $5.78 | |
| 6 | 0822-120 | DOG,SLIDING-REVERSE SD | 1 | $102.95 | |
| 7 | 0822-121 | SHIM,DRIVE GEAR SPACER | 1 | $17.87 | |
| 8 | 0822-119 | GEAR,REVERSE-DRIVEN-32T | 1 | $156.95 | |
| 9 | 0832-082 | BEARING,ROLLER NEEDLE-25X30X13 | 1 | $42.95 | |
| 10 | 0822-114 | GEAR,DRIVEN-LOW-40T | 1 | $150.95 | |
| 11 | 0822-113 | COUNTERSHAFT-SD | 1 | $331.95 | |
| 12 | 0822-116 | DOG,SLIDING-FORWARD SD | 1 | $180.95 | |
| 13 | 0822-115 | GEAR,DRIVEN-HIGH-30T | 1 | $129.95 | |
| 14 | 0828-011 | WASHER, STEEL 20 x 40 x 1 | 1 | $6.75 | |
| 15 | 0818-072 | R/B 0818-171 | 1 | $125.95 | |
| 16 | 0818-006 | SHAFT, SHIFT FORK | 1 | $30.95 | |
| 17 | 0822-052 | SEAL, COUNTER SHAFT RH | 1 | $10.97 | |
| 18 | 0831-040 | RING, EXTERNAL RETAINING - DSH-17 | 1 | $0.40 | |
| 19 | 0822-050 | TRIGGER, SPEEDO SENSOR | 1 | $16.49 | |
| 20 | 0828-069 | WASHER, THRUST | 1 | $1.37 | |
| 21 | 0831-039 | RING,EXTERNAL RETAINING - DSH-13 | 1 | $0.26 | |
| 22 | 0830-129 | GASKET,ODOMETER DRIVE | 1 | $3.44 | |
| 23 | 0829-023 | PIN, SOLID DOWEL (6 X12) | 1 | $3.16 | |
| 24 | 0822-049 | HOUSING, SPEEDO SENSOR | 1 | $33.95 | |
| 25 | 0830-107 | SEAL,FASTENER | 1 | $4.95 | |
| 26 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 27 | 0824-042 | SENSOR,SPEEDO-HALL EFFECT | 1 | $47.95 | |
| 28 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 29 | 0828-038 | WASHER, STEEL, 6 x 14 x .9 | 1 | $1.64 | |
| 30 | 0818-002 | STOPPER, SWING ARM, CAM ASSY | 1 | $50.95 | |
| 31 | 0818-004 | SUPPORT, CAM STOPPER | 1 | $4.95 | |
| 32 | 0818-090 | SPRING,TORSION,DETENT ARM | 1 | $3.30 | |
| 33 | 0828-035 | WASHER, STEEL 6 x 16 x 2.5 | 1 | $2.61 | |
| 34 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 35 | 0828-036 | WASHER, STEEL, 12 x 20 x .9 | 1 | $1.37 | |
| 36 | 0831-010 | RING, EXTERNAL RETAINING - DSH-12 | 1 | $1.50 | |
| 37 | 0818-007 | SHAFT, SUB-GEAR SHIFT | 1 | $37.95 | |
| 38 | 1402-557 | GASKET,COVER-SELECTOR | 1 | $12.35 | |
| 39 | 1502-009 | COVER,SELECTOR,GEARBOX-MACH | 1 | $126.95 | |
| 40 | 8405-620 | SCREW,CAP-HH M6X1.0X20 CL10.9 Z&BL | 1 | $0.81 | |
| 41 | 0830-044 | SEAL, SUB-GEAR SHIFT | 1 | $4.54 | |
| 42 | 0818-164 | ARM,GEAR SELECT-ASSY | 1 | $64.95 | |
| 43 | 1402-556 | STOP,SPRING-SELECTOR | 1 | $58.95 | |
| 44 | 0818-089 | DETENT CAM,GEAR SHIFT | 1 | $17.87 | |
| 45 | 0826-006 | SCREW,CAP HFH M6 x 1 x 25 | 1 | $0.95 | |
| 46 | 0812-006 | PLUG, DRAIN MAGNETIC | 1 | $19.25 | |
| 47 | 0830-017 | GASKET, METAL, COMPRESSION | 1 | $5.09 | |
| 48 | 1402-102 | BARB, 90 DEGREE | 1 | $66.95 | |
| 49 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 50 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 51 | 0470-689 | DIPSTICK | 1 | $33.95 | |
| 52 | 2506-388 | TUBE,DIPSTICK-BLACK | 1 | $30.95 | |
| 53 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 54 | 2506-445 | BRKT,DIPSTICK TUBE - PTD | 1 | $17.87 | |
| 55 | 0423-715 | O-RING,12.7 X 1.78 | 1 | $10.97 | |
| 56 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 57 | 0827-013 | NUT,HEX SHOULDER M16X1.5 | 1 | $3.02 | |
| 58 | 0828-020 | WASHER, STEEL, 16.3 x 30 x 3 | 1 | $3.30 | |
| 59 | 0819-005 | FLANGE, OUTPUT JOINT - REAR, ASSEMBLY | 1 | $69.95 | |
| 60 | 0830-043 | SEAL,OIL-DRIVEN SHAFT | 1 | $6.89 | |
| 61 | 0819-011 | RING, DRIVEN BEARING | 1 | $17.87 | |
| 62 | 0832-016 | BEARING, DRIVEN GEAR | 1 | $50.95 | |
| 63 | 1402-555 | SLEEVE,BEARING | 1 | $56.95 | |
| 64 | 1402-867 | GEAR,BEVEL(20T)-SECONDARY DRIVEN | 1 | $192.95 | |
| 65 | 1402-864 | SHIM,25 X 40 X 3.4 | 1 | $30.95 | |
| 66 | 1402-554 | SHAFT,OUTPUT-SECONDARY | 1 | $239.95 | |
| 67 | 0828-021 | SHIM, 25 x 34 x .25 | 1 | $2.47 | |
| 67 | 0828-022 | SHIM, 25 x 34 x .30 | 1 | $8.21 | |
| 67 | 0828-023 | SHIM, 25 X 34 X 0.35 MM | 1 | $17.87 | |
| 67 | 0828-024 | SHIM,. 25 x 34 x .90 | 1 | $17.87 | |
| 67 | 0828-025 | SHIM, 25 x 34 x .95 | 1 | $17.87 | |
| 67 | 0828-026 | SHIM, 25 x 34 x 1.00 | 1 | $17.87 | |
| 67 | 0828-027 | SHIM, 25 x 34 x 1.05 | 1 | $17.87 | |
| 67 | 0828-028 | SHIM, 25 x 34 x 1.10 | 1 | $16.49 | |
| 67 | 0828-029 | SHIM, 25 x 34 x 1.15 | 1 | $17.87 | |
| 68 | 0832-017 | R/B 0832-107 | 1 | $125.95 | |
| 69 | 0819-061 | YOKE,DRIVE OUTPUT-FRONT ASSY | 1 | $69.95 | |
| 70 | 1402-164 | CROSS, UNIVERSAL(20mm)-SET | 1 | $22.01 | |
| 71 | 0423-450 | RING,RETAINING-CROSS | 1 | $3.02 | |
| 72 | 0819-063 | YOKE,PROPELLER SHAFT-ASSY | 1 | $66.95 |
