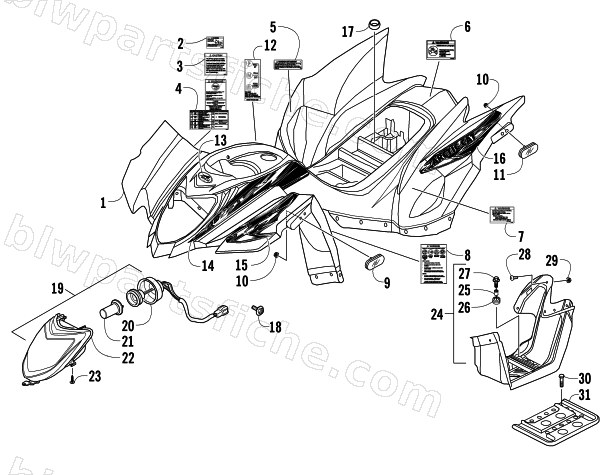

2013 Arctic Cat 90 2X4 DVX — BODY PANEL AND HEADLIGHT ASSEMBLY

2013 90 2X4 DVX

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3306-815	BODY,MAIN-W/DECALS (RED)	1	$371.95
2	0411-836	DECAL,WARNING HILL (MINI)	1	$82.95
3	2411-162	DECAL,CAUTION LEAD CONTENT	1	$10.97
4	2411-136	DECAL,WARNING-RVS/PRE-RIDE/Y12	1	$17.87
5	1411-577	DECAL,WARNING-OFF ROAD ONLY	1	$50.95
6	1411-809	DECAL,WARNING-PASSENGER	1	$3.30
7	1411-938	DECAL,WARNING-TIRE/LOAD (MINI)	1	$12.35
8	1411-932	DECAL,WARNING-GENERAL	1	$12.35
9	3313-359	REFLECTOR,FRONT (OVAL)	1	$13.73
10	3304-774	NUT FLANGE 5MM(G)	1	$0.81
11	3313-360	REFLECTOR,REAR (OVAL)	1	$13.73
12	2411-052	DECAL,SHIFT	1	$17.87
13	9611-751	DECAL,EMBLEM-CHROME	1	$42.95
14	3411-014	DECAL,TANK-DVX 90-RED-RH	1	$82.95
14	3411-015	DECAL,TANK-DVX 90-RED-LH	1	$82.95
15	3411-012	DECAL,FENDER-FRONT-RH (DVX 90)	1	$33.95
15	3411-013	DECAL,FENDER-FRONT-LH (DVX 90)	1	$33.95
16	3411-016	DECAL,FENDER-REAR-RH (DVX 90)	1	$50.95
16	3411-017	DECAL,FENDER-REAR-LH (DVX 90)	1	$50.95
17	3303-232	RUBBER REAR FENDER	1	$1.92
18	3304-587	BOLT WASHER 6*16	1	$1.23
19	3304-280	LIGHT ASSY R HEAD	1	$203.95
20	3304-282	SOCKET COMP	1	$37.95
21	3303-846	BULB HEAD LIGHT	1	$42.95
22	3304-281	UNIT HEAD LIGHT	1	$180.95
23	3304-650	SCREW TAPPING 5*16 (CIRCLE HEAD)	1	$1.50
24	3306-144	MUDGUARD ASSY R FLOOR	1	$82.95
24	3306-145	MUDGUARD ASSY L FLOOR	1	$82.95
25	3303-233	COLLAR FLOOR	1	$2.33
26	3303-227	RUBBER WIND SCREEN	1	$1.92
27	3304-586	BOLT WASHER 6*20	1	$1.23
28	3305-703	SCREW SPECIAL 6*20	1	$1.78
29	3304-431	NUT LOCK	1	$1.23
30	3304-543	BOLT FLANGE 8*16	1	$1.50
31	3304-494	FOOTREST-RH	1	$37.95
31	3304-495	FOOTREST-LH	1	$37.95
