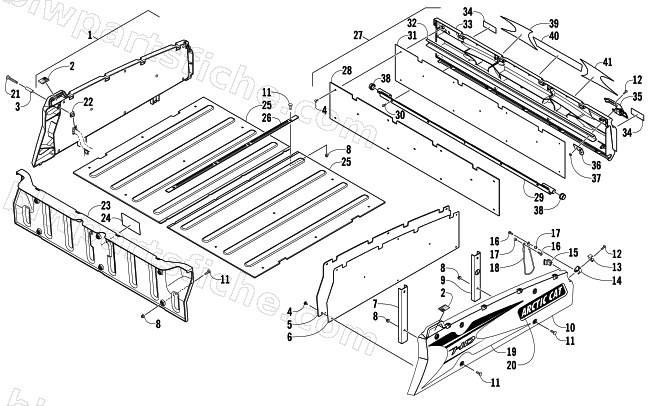

2013 Arctic Cat PROWLER 700 HDX KE — CARGO BOX AND TAILGATE ASSEMBLY
2013 PROWLER 700 HDX KE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-522 | R/B 7506-730 | 1 | $387.95 | |
| 1 | 4506-523 | R/B 7506-731 | 1 | $387.95 | |
| 2 | 2411-294 | DECAL,WARNING-BOX | 1 | $4.95 | |
| 3 | 2416-368 | TUBE,SPACER | 1 | $5.65 | |
| 4 | 1423-011 | SCREW,TSTRH SELF TAP#10 X 3/4 | 1 | $0.95 | |
| 5 | 4506-524 | R/B 7506-728 | 1 | $143.95 | |
| 6 | 2416-647 | PAD,FOAM-SIDE PANEL | 1 | $20.63 | |
| 7 | 4506-154 | BRACKET,SIDE MOUNT-REAR-WELDMENT | 1 | $47.95 | |
| 8 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 4506-153 | BRACKET,SIDE MOUNT-FRONT-WELDMENT | 1 | $47.95 | |
| 10 | 2416-392 | PANEL,SIDE-RH | 1 | $129.95 | |
| 10 | 2416-393 | PANEL,SIDE-LH | 1 | $129.95 | |
| 11 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 12 | 1423-038 | SCREW,MACH-TSTRH M6X1.0X20 | 1 | $1.50 | |
| 13 | 2516-710 | BRACKET, LATCH - PTD BLACK | 1 | $17.87 | |
| 14 | 2416-379 | BRACKET,LATCH | 1 | $17.87 | |
| 15 | 2416-390 | PAD,TAILGATE-RH | 1 | $2.61 | |
| 15 | 2416-391 | PAD,TAILGATE-LH | 1 | $2.61 | |
| 16 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 17 | 1423-009 | SPACER, TAILGATE CABLE | 1 | $4.54 | |
| 18 | 0487-080 | CABLE,TAILGATE-HDX | 1 | $17.87 | |
| 19 | 3411-218 | DECAL,BOX-SIDE-EGM-RH | 1 | $50.95 | |
| 19 | 3411-219 | DECAL,BOX-SIDE-EGM-LH | 1 | $50.95 | |
| 20 | 2411-208 | DECAL,SIDE-RR-RH (ARCTIC CAT) | 1 | $19.72 | |
| 20 | 2411-209 | DECAL,SIDE-RR-LH (ARCTIC CAT) | 1 | $19.72 | |
| 21 | 1423-010 | SCREW,TSPNH M10X1.25X70 4037A RIE | 1 | $10.97 | |
| 22 | 2416-378 | CLIP, SIDE PANEL MOUNTING | 1 | $17.87 | |
| 23 | 4406-588 | PANEL,FRONT | 1 | $129.95 | |
| 24 | 2411-229 | DECAL,WARNING-CARGO BOX (1000#) | 1 | $13.73 | |
| 25 | 2416-396 | PANEL,CARGO BOX-BED | 1 | $187.95 | |
| 26 | 2516-871 | STRIP,BOX BOT CENTER-PTD BLACK | 1 | $33.95 | |
| 27 | 4506-589 | TAILGATE-ASSEMBLY | 1 | $573.95 | |
| 28 | 4506-526 | PANEL,INNER-TAILGATE-PTD | 1 | $129.95 | |
| 29 | 4506-626 | PIVOT,TAILGATE-PTD BLACK | 1 | $114.95 | |
| 30 | 1423-083 | SCREW,TSPH 1/4-10 X 1-1/4 PLASTITE | 1 | $2.19 | |
| 31 | 2416-648 | PAD,FOAM-TAILGATE | 1 | $17.87 | |
| 32 | 2416-652 | SUPPORT, TAILGATE | 1 | $64.95 | |
| 33 | 2416-395 | PANEL,TAILGATE | 1 | $129.95 | |
| 34 | 2411-182 | DECAL,REFLECTOR-REAR-HDX | 1 | $6.34 | |
| 35 | 2516-729 | LATCH, TAILGATE - PTD BLACK | 1 | $54.95 | |
| 36 | 2416-370 | BRACKET, LATCH SUPPORT | 1 | $19.25 | |
| 37 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 38 | 2416-363 | BUSHING, TAILGATE PIVOT | 1 | $6.47 | |
| 39 | 3411-230 | DECAL,TAILGATE-EGM-RH | 1 | $13.73 | |
| 40 | 2411-212 | DECAL,TAILGATE-CENTER (ARCTIC CAT) | 1 | $4.95 | |
| 41 | 3411-231 | DECAL,TAILGATE-EGM-LH | 1 | $13.73 |
