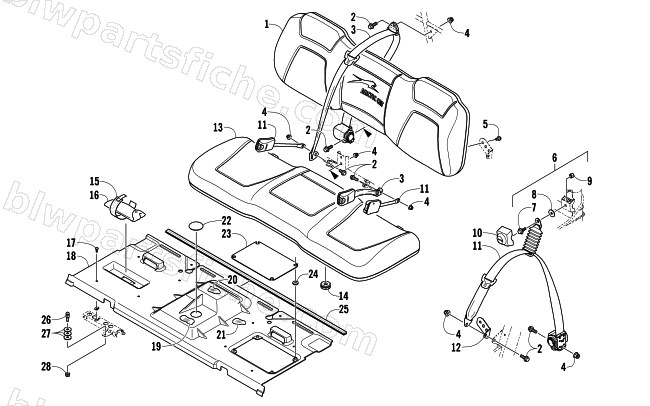

2013 Arctic Cat PROWLER 700 HDX KE — SEAT ASSEMBLY
2013 PROWLER 700 HDX KE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-897 | SEAT,BENCH-BACKREST | 1 | $591.95 | |
| 2 | 1423-182 | SCREW,CAP-HFH M12X1.75X30 CL10.9 RIE BLK | 1 | $3.71 | |
| 3 | 5506-195 | BELT,SEAT-3PT 13" NRW-ASSEMBLY | 1 | $341.95 | |
| 4 | 1423-184 | NUT,HEX FLG-NYL LOCK M12X1.75 CL10 Z&Y | 1 | $1.64 | |
| 5 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 6 | 0423-915 | SHOULDER BOLT ASSY (PKG) | 1 | $20.63 | |
| 10 | 2416-638 | COVER,SEAT BELT | 1 | $4.26 | |
| 11 | 5506-159 | BELT,SEAT-3PT 11.5" NAR CABLE-ASSY | 1 | $324.95 | |
| 12 | 2516-868 | SEAT SUPPORT,OUTER-RH-BLK | 1 | $17.87 | |
| 12 | 2516-869 | SEAT SUPPORT,OUTER-LH-BLK | 1 | $17.87 | |
| 13 | 5506-616 | SEAT,BENCH-BOTTOM-W/FOIL | 1 | $446.95 | |
| 14 | 1423-066 | GROMMET-SEAT | 1 | $50.95 | |
| 15 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 16 | 2516-863 | KIT,TOOL-HDX | 1 | $69.95 | |
| 17 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 18 | 2416-457 | BASE,SEAT | 1 | $110.95 | |
| 19 | 0412-583 | FOIL,PROTECTIVE-SEATBASE (A) | 1 | $10.97 | |
| 20 | 0412-584 | FOIL,PROTECTIVE-SEATBASE (B) | 1 | $8.21 | |
| 21 | 0412-585 | FOIL,PROTECTIVE-SEATBASE (C) | 1 | $6.47 | |
| 22 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 23 | 2416-491 | COVER,BATTERY BOX-SEATBASE | 1 | $23.39 | |
| 24 | 1623-156 | GROMMET, 3/8(ID)-7/8(OD) | 1 | $4.82 | |
| 25 | 2406-915 | SEAL,CARGO BOX | 1 | $74.95 | |
| 26 | 0423-559 | STUD,LATCH-SEAT | 1 | $13.73 | |
| 27 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 28 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 |
