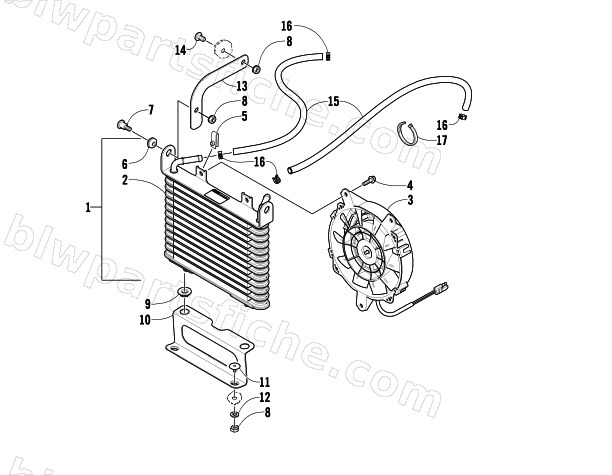

COOLING ASSEMBLY
2013 TRV 400
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0513-026 | COOLER,OIL-ASSEMBLY | 1 | $567.95 | |
| 2 | 0413-224 | COOLER,OIL | 1 | $438.95 | |
| 3 | 0413-145 | FAN,COOLING-6" | 1 | $209.95 | |
| 4 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 5 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 6 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 7 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 8 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 9 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 10 | 0513-021 | BRKT,MTG LOWER-OIL COOLER-PTD | 1 | $20.63 | |
| 11 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 12 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 13 | 0513-020 | BRKT,MTG UPPER-OIL COOLER-PTD | 1 | $10.97 | |
| 14 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 15 | 0410-044 | HOSE,OIL-30 (0410-014 CTL) | 1 | $47.95 | |
| 16 | 0423-098 | CLAMP,HOSE(NORMA FBS 17-12) | 1 | $2.75 | |
| 17 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
