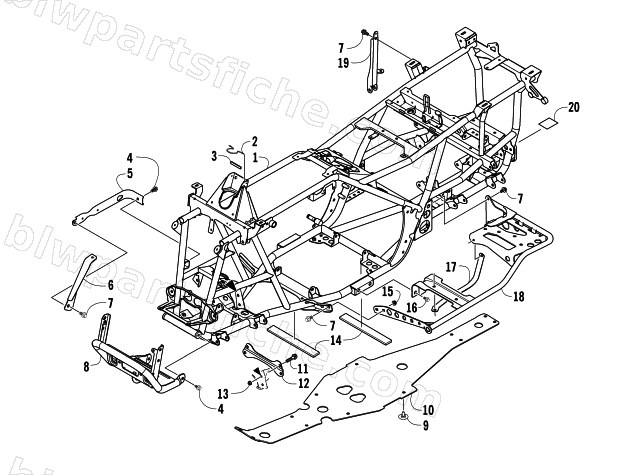

FRAME AND RELATED PARTS
2013 TRV 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-831 | FRAME,MAIN-TRV-PTD BLACK (VP) | 1 | $1,534.95 | |
| 2 | 2416-401 | CLIP,WIRE HARNESS | 1 | $3.44 | |
| 3 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 6 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 6 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 7 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 4506-826 | BUMPER,FRONT-PTD BLK (VP) | 1 | $148.95 | |
| 9 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 10 | 2406-091 | PANEL,BELLY | 1 | $187.95 | |
| 11 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 12 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 13 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 14 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 15 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 17 | 2406-216 | STRAP,FOOTREST SUPPORT-RH | 1 | $20.63 | |
| 17 | 2406-217 | STRAP,FOOTREST SUPPORT-LH | 1 | $20.63 | |
| 18 | 1506-848 | FOOTREST,RH-WELDMENT | 1 | $156.95 | |
| 18 | 1506-849 | FOOTREST,LH-WELDMENT | 1 | $156.95 | |
| 19 | 2506-447 | BRACKET,FUEL TANK-BLACK | 1 | $25.95 | |
| 20 | 1411-077 | R/B 4411-550 | 1 | $3.95 |
