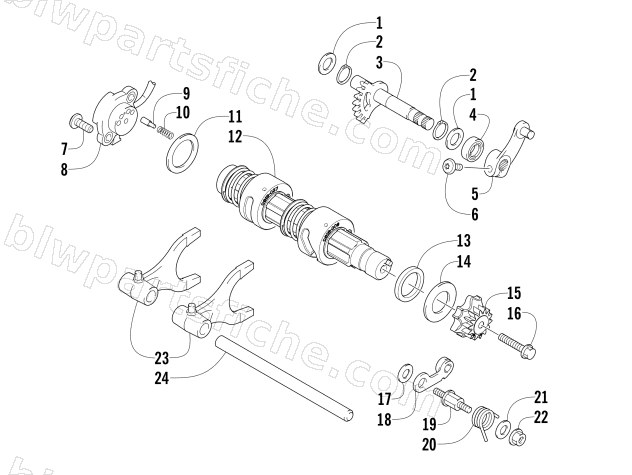

GEAR SHIFTING ASSEMBLY
2013 TRV 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0828-036 | WASHER, STEEL, 12 x 20 x .9 | 1 | $1.37 | |
| 2 | 0831-010 | RING, EXTERNAL RETAINING - DSH-12 | 1 | $1.50 | |
| 3 | 0818-007 | SHAFT, SUB-GEAR SHIFT | 1 | $37.95 | |
| 4 | 0830-044 | SEAL, SUB-GEAR SHIFT | 1 | $4.54 | |
| 5 | 0818-164 | ARM,GEAR SELECT-ASSY | 1 | $64.95 | |
| 6 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 7 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 8 | 0409-090 | SWITCH,GEAR-ENGINE (08 H1) | 1 | $85.95 | |
| 9 | 0818-013 | CONTACT,GEAR SHIFT ASSY | 1 | $13.73 | |
| 10 | 0818-017 | SPRING, SHIFT CONTACTS | 1 | $19.25 | |
| 11 | 0828-040 | WASHER, STEEL, 25 x 34 x .72 | 1 | $1.78 | |
| 12 | 0818-075 | SHAFT,GEAR SHIFT-SUB ASSY | 1 | $190.95 | |
| 13 | 0828-131 | SPACER,SHIFT SHAFT | 1 | $4.95 | |
| 14 | 0828-037 | WASHER, STEEL 20 x 28 x .5 | 1 | $3.02 | |
| 15 | 0818-089 | DETENT CAM,GEAR SHIFT | 1 | $17.87 | |
| 16 | 0826-006 | SCREW,CAP HFH M6 x 1 x 25 | 1 | $0.95 | |
| 17 | 0828-038 | WASHER, STEEL, 6 x 14 x .9 | 1 | $1.64 | |
| 18 | 0818-002 | STOPPER, SWING ARM, CAM ASSY | 1 | $50.95 | |
| 19 | 0818-004 | SUPPORT, CAM STOPPER | 1 | $4.95 | |
| 20 | 0818-090 | SPRING,TORSION,DETENT ARM | 1 | $3.30 | |
| 21 | 0828-035 | WASHER, STEEL 6 x 16 x 2.5 | 1 | $2.61 | |
| 22 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 23 | 0818-072 | R/B 0818-171 | 1 | $125.95 | |
| 24 | 0818-006 | SHAFT, SHIFT FORK | 1 | $30.95 |
