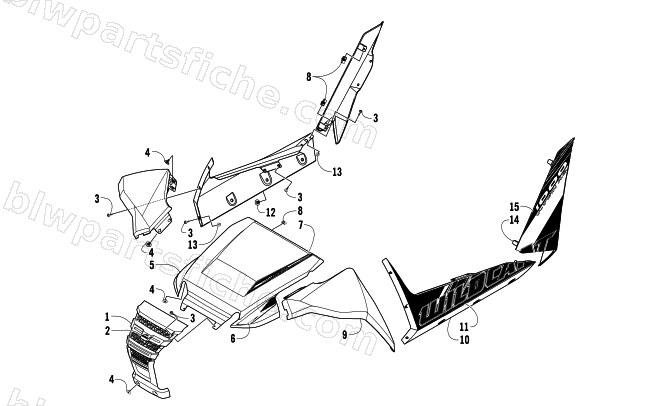

2013 Arctic Cat WILDCAT 1000 LATE BUILD — FRONT AND SIDE PANEL ASSEMBLIES
2013 WILDCAT 1000 LATE BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-685 | GRILLE,FRONT | 1 | $41.95 | |
| 2 | 2411-943 | DECAL,GRILL-FRONT | 1 | $15.11 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 4506-786 | HOOD,A.M.GREEN-PTD | 1 | $320.95 | |
| 6 | 3411-130 | DECAL,HOOD-FWD-RH-AGM (WC) | 1 | $4.95 | |
| 6 | 3411-131 | DECAL,HOOD-FWD-LH-AGM (WC) | 1 | $4.95 | |
| 7 | 3411-128 | DECAL,HOOD-SIDE-RH-AGM (WC) | 1 | $10.97 | |
| 7 | 3411-129 | DECAL,HOOD-SIDE-LH-AGM (WC) | 1 | $10.97 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 4506-788 | PANEL,FENDER-FRT-RH A.M.GREEN-PTD | 1 | $212.95 | |
| 9 | 4506-789 | PANEL,FENDER-FRT-LH A.M.GREEN-PTD | 1 | $212.95 | |
| 10 | 2416-988 | PANEL,SIDE-LWR-RH-BLK | 1 | $50.95 | |
| 10 | 2416-989 | PANEL,SIDE-LWR-LH-BLK | 1 | $50.95 | |
| 11 | 3411-132 | DECAL,SIDE-LOWER-WC-AGM-RH | 1 | $66.95 | |
| 11 | 3411-133 | DECAL,SIDE-LOWER-WC-AGM-LH | 1 | $64.95 | |
| 12 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 2416-990 | PANEL,SIDE-UPR-REAR-RH-BLK | 1 | $37.95 | |
| 14 | 2416-991 | PANEL,SIDE-UPR-REAR-LH-BLK | 1 | $37.95 | |
| 15 | 3411-134 | DECAL,SIDE-UPR-RH-AGM (WC) | 1 | $42.95 | |
| 15 | 3411-135 | DECAL,SIDE-UPR-LH-AGM (WC) | 1 | $42.95 |
