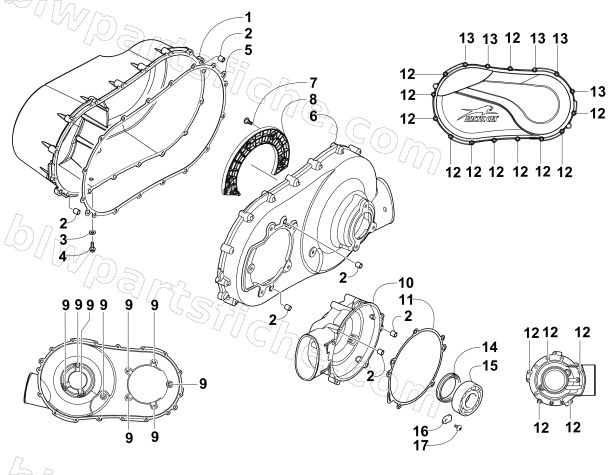

2013 Arctic Cat WILDCAT 1000 LTD LATE BUILD — CLUTCH SIDE ENGINE COVERS
2013 WILDCAT 1000 LTD LATE BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-129 | COVER,H2 CVT-FLYWEIGHT | 1 | $268.95 | |
| 2 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 3 | 0830-013 | WASHER,CRUSH, 8 x 16 x 1 | 1 | $1.09 | |
| 4 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 5 | 0830-137 | GASKET,CVT COVER,VTWIN | 1 | $30.95 | |
| 6 | 0806-168 | COVER,INNER CLUTCH-MACH | 1 | $178.95 | |
| 7 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 8 | 0823-422 | PLATE,WINDAGE | 1 | $26.95 | |
| 9 | 8468-617 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353 | 1 | $0.54 | |
| 10 | 0806-159 | COVER,CLUTCH,FW,OIL RELIEF | 1 | $177.95 | |
| 11 | 0830-218 | GASKET,CENTRIF CLUTCH COVER,VTWIN | 1 | $13.73 | |
| 12 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 13 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 14 | 0832-096 | SEAL,OIL-35X70X8 | 1 | $26.95 | |
| 15 | 0832-043 | BEARING,BALL-S/R 35X80X21 | 1 | $66.95 | |
| 16 | 0822-010 | RETAINER, BEARING | 1 | $3.16 | |
| 17 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 |
