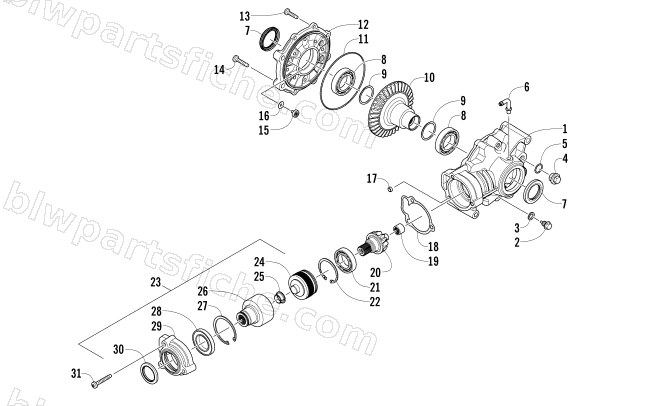

2013 Arctic Cat WILDCAT 1000 LTD LATE BUILD — REAR DRIVE GEARCASE ASSEMBLY
2013 WILDCAT 1000 LTD LATE BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2502-083 | GEARCASE,REAR-ASSEMBLY | 1 | $1,774.95 | |
| 1 | 1502-921 | HOUSING,GEARCASE-MACH (HT) | 1 | $280.95 | |
| 2 | 2402-043 | PLUG,DRAIN-MAGNETIC | 1 | $5.09 | |
| 3 | 2402-044 | WASHER,DRAIN PLUG | 1 | $2.61 | |
| 4 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 5 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 6 | 1402-442 | BARB, 90 DEGREE | 1 | $20.63 | |
| 7 | 2402-040 | SEAL,40 X 62 X 7 | 1 | $16.49 | |
| 8 | 2402-042 | BEARING,BALL - 40 X 68 X 15 | 1 | $17.87 | |
| 9 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 9 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 9 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 9 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 9 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 10 | 2402-035 | GEAR,RING-34T MACH (HT) | 1 | $366.95 | |
| 11 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 12 | 1502-922 | COVER,GEARCASE-MACH (HT) | 1 | $113.95 | |
| 13 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 14 | 0423-115 | SCREW,SELF TAP-TSPNH M10X1.5X55 | 1 | $1.78 | |
| 15 | 0402-326 | BUTTON,THRUST | 1 | $6.34 | |
| 16 | 0402-429 | SHIM,6.3X18X1.3 | 1 | $10.97 | |
| 16 | 0402-430 | SHIM,6.3X18X1.4 | 1 | $12.35 | |
| 16 | 0402-431 | SHIM,6.3X18X1.5 | 1 | $12.35 | |
| 16 | 0402-432 | SHIM,6.3X18X1.6 | 1 | $10.97 | |
| 16 | 0402-433 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 17 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 18 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 19 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 20 | 2402-037 | GEAR,PINION-11T MACH (HT) | 1 | $113.95 | |
| 21 | 0402-324 | BEARING,BALL (6007 OPEN ) | 1 | $33.95 | |
| 22 | 1423-067 | RING,RETAINING-INTL-65mm (DHO-62 ST ZDL) | 1 | $2.06 | |
| 23 | 1502-998 | SHAFT,INPUT TORQUE LIMITING-ASSEMBLY | 1 | $612.95 | |
| 24 | 1502-997 | CARTRIDGE,CLUTCH-ASSEMBLY | 1 | $595.95 | |
| 25 | 1402-966 | BEARING,FLANGE-20X23X11.5-PTL | 1 | $17.87 | |
| 26 | 1402-965 | BASKET,CLUTCH | 1 | $165.95 | |
| 27 | 0423-798 | RING,RETAINING,INTERNAL 68MM-PTL | 1 | $23.39 | |
| 28 | 1402-677 | BEARING,BALL,16008 C3 40X68X9-PTL | 1 | $49.95 | |
| 29 | 1502-838 | HOUSING,INPUT-MACH | 1 | $66.95 | |
| 30 | 0402-089 | SEAL,40MMX55MMX6MM-DBL LIP(R/B 2402-611) | 1 | $4.95 | |
| 31 | 1423-065 | SCREW, TAPTITE-TSPNH M8-1.25 X 55-BLK | 1 | $27.95 |
