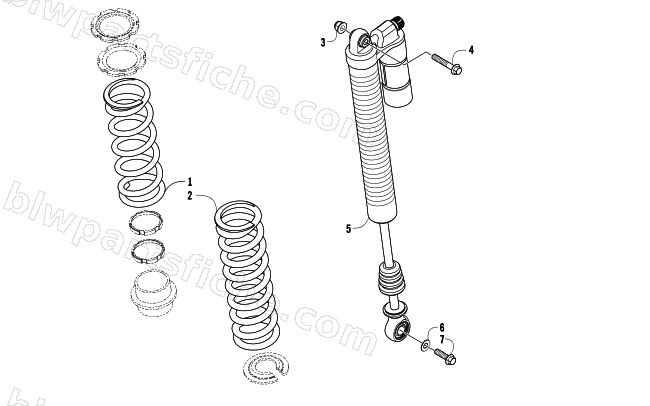

2013 Arctic Cat WILDCAT 1000 LTD LATE BUILD — REAR SUSPENSION SHOCK ASSEMBLY
2013 WILDCAT 1000 LTD LATE BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-699 | SPRING, REAR - TENDER - PTD WHITE | 1 | $49.95 | |
| 2 | 0504-698 | SPRING, REAR - MAIN - PTD WHITE | 1 | $75.95 | |
| 3 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 4 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 5 | 0404-363 | SHOCK,REAR (FOX) | 1 | $729.95 | |
| 6 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 7 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 |
