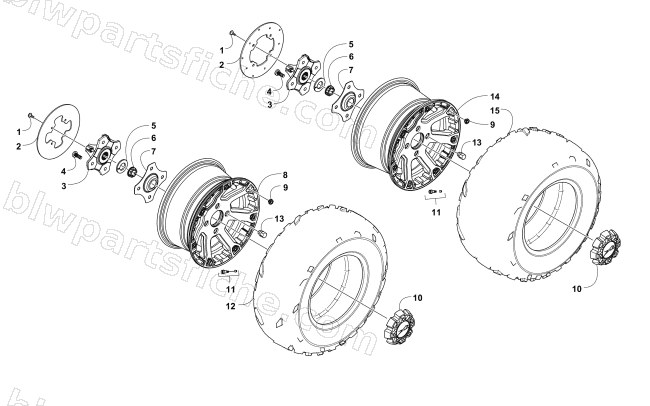

WHEEL AND TIRE ASSEMBLY
2013 WILDCAT 1000 LTD LATE BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-807 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 2 | 1436-808 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 1502-971 | HUB, ASSEMBLY | 1 | $178.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 2402-088 | SPRING,BELLEVILLE-26.3 ID X 50.4 OD X 3 | 1 | $5.45 | |
| 6 | 1423-164 | NUT,CASTLE FLG-M22 X 1.5 | 1 | $5.92 | |
| 7 | 2402-087 | PLATE,HUB | 1 | $5.92 | |
| 8 | 2402-017 | WHEEL,FRONT-14"X6.5" | 1 | $260.95 | |
| 9 | 1423-079 | BOLT,PLASTIC 14.5 | 1 | $1.92 | |
| 10 | 2402-003 | CAP,CENTER | 1 | $23.39 | |
| 11 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 12 | 1402-953 | TIRE,DURO KADEN-26X9R14 | 1 | $211.95 | |
| 13 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 14 | 2402-018 | WHEEL,REAR-14"X8.0" | 1 | $275.95 | |
| 15 | 1402-954 | TIRE,DURO KADEN-26X11R14 | 1 | $220.95 |
