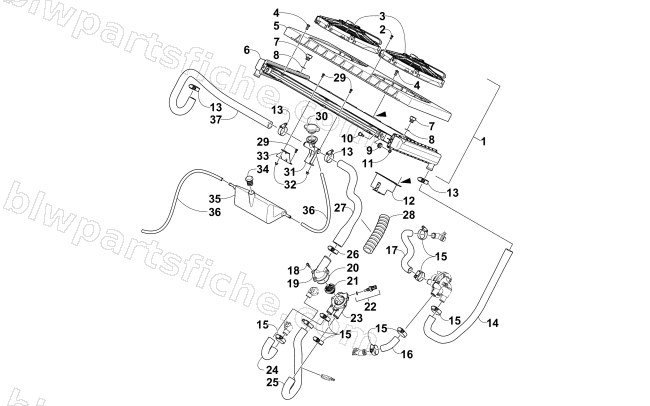

COOLING ASSEMBLY
2013 WILDCAT 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-278 | RADIATOR - ASSEMBLY | 1 | $1,162.95 | |
| 2 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 3 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 4 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 5 | 0413-292 | SHROUD,FAN | 1 | $165.95 | |
| 6 | 0413-293 | RADIATOR - FABRICATED | 1 | $656.95 | |
| 7 | 0413-195 | PLUG,DRAIN-RADIATOR | 1 | $20.63 | |
| 8 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 9 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 10 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 2416-966 | BRACKET, COIL MOUNTING | 1 | $12.35 | |
| 13 | 0423-632 | CLAMP,HOSE #5 MICRO-GEAR SIZE 05 | 1 | $4.82 | |
| 14 | 0410-238 | HOSE,COOLANT-2 | 1 | $26.95 | |
| 15 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 16 | 0410-115 | HOSE,COOLANT-#1 COLD | 1 | $24.77 | |
| 17 | 0410-116 | HOSE,COOLANT-#2 COLD | 1 | $32.95 | |
| 18 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 19 | 0808-092 | COVER, THERMOSTAT | 1 | $17.87 | |
| 20 | 0830-173 | ORING,ID44.12 X CS2.62 | 1 | $1.50 | |
| 21 | 0808-093 | THERMOSTAT, 71 DEG (FINAL) | 1 | $37.95 | |
| 22 | 0808-124 | SENSOR,WATER TEMP.-ASSY | 1 | $26.95 | |
| 23 | 0808-189 | HOUSING,THERMOSTAT-MACHINING | 1 | $54.95 | |
| 24 | 0410-191 | HOSE,COOLANT-REAR | 1 | $23.39 | |
| 25 | 0410-253 | HOSE,COOLANT - 4 | 1 | $30.95 | |
| 26 | 1623-093 | CLAMP,BAND-SAE #20 | 1 | $5.78 | |
| 27 | 0410-239 | HOSE,COOLANT-3 | 1 | $29.95 | |
| 28 | 1619-038 | PROTECTOR,HOSE-1.27 X 1.06 X 7.00" | 1 | $6.06 | |
| 29 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 30 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 31 | 0413-280 | FILLER NECK, RADIATOR | 1 | $12.35 | |
| 32 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 33 | 2416-976 | BRACKET, OVERFLOW BOTTLE | 1 | $12.35 | |
| 34 | 0413-087 | STOPPER,COOLANT | 1 | $4.54 | |
| 35 | 0413-300 | BOTTLE,OVERFLOW | 1 | $58.95 | |
| 36 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 37 | 0410-237 | HOSE,COOLANT-1 | 1 | $41.95 |
