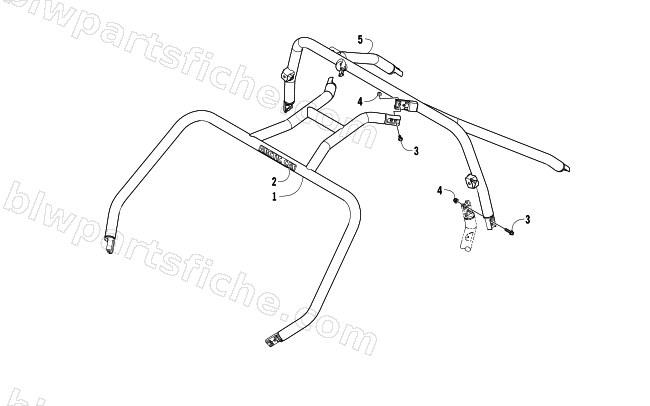

2013 Arctic Cat WILDCAT 1000 — ROPS ASSEMBLY
2013 WILDCAT 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-409 | CANOPY FRNT HOOP - PTD BLK | 1 | $548.95 | |
| 2 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 3 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 4 | 8427-805 | NUT,HEX FLG-NYLOCK M8X1.25 CL8 RIE BLACK | 1 | $1.09 | |
| 5 | 4506-499 | CANOPY REAR HOOP-PTD BLK | 1 | $636.95 |
