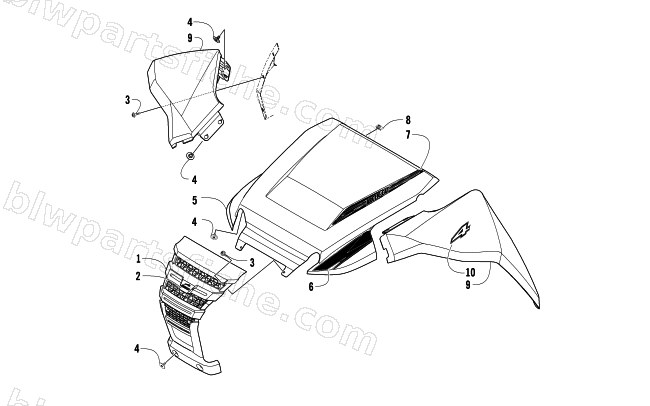

2013 Arctic Cat WILDCAT 4 — FRONT PANEL ASSEMBLY
2013 WILDCAT 4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-685 | GRILLE,FRONT | 1 | $41.95 | |
| 2 | 2411-943 | DECAL,GRILL-FRONT | 1 | $15.11 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 4506-786 | HOOD,A.M.GREEN-PTD | 1 | $320.95 | |
| 5 | 4506-772 | HOOD,M.BLACK-PTD | 1 | $337.95 | |
| 5 | 5506-177 | HOOD,S.S.ORANGE-PTD | 1 | $352.95 | |
| 6 | 3411-130 | DECAL,HOOD-FWD-RH-AGM (WC) | 1 | $4.95 | |
| 6 | 3411-131 | DECAL,HOOD-FWD-LH-AGM (WC) | 1 | $4.95 | |
| 6 | 3411-116 | DECAL,HOOD-FWD-WC-BLK-RH | 1 | $4.95 | |
| 6 | 3411-117 | DECAL,HOOD-FWD-WC-BLK-LH | 1 | $4.95 | |
| 6 | 3411-282 | DECAL,HOOD-FWD-WC-SSO-RH | 1 | $26.95 | |
| 6 | 3411-283 | DECAL,HOOD-FWD-WC-SSO-LH | 1 | $26.95 | |
| 7 | 3411-128 | DECAL,HOOD-SIDE-RH-AGM (WC) | 1 | $10.97 | |
| 7 | 3411-129 | DECAL,HOOD-SIDE-LH-AGM (WC) | 1 | $10.97 | |
| 7 | 3411-114 | DECAL,HOOD-UPPER-WC-BLK-RH | 1 | $10.97 | |
| 7 | 3411-115 | DECAL,HOOD-UPPER-WC-BLK-LH | 1 | $10.97 | |
| 7 | 3411-284 | DECAL,HOOD-UPPER-WC-SSO-RH | 1 | $17.87 | |
| 7 | 3411-285 | DECAL,HOOD-UPPER-WC-SSO-LH | 1 | $17.87 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 4506-788 | PANEL,FENDER-FRT-RH A.M.GREEN-PTD | 1 | $212.95 | |
| 9 | 4506-789 | PANEL,FENDER-FRT-LH A.M.GREEN-PTD | 1 | $212.95 | |
| 9 | 4506-756 | PANEL,FENDER-FRT-RH M.BLACK-PTD | 1 | $212.95 | |
| 9 | 4506-757 | PANEL,FENDER-FRT-LH M.BLACK-PTD | 1 | $212.95 | |
| 9 | 5506-178 | PANEL,FENDER-FRT-RH S.S.ORANGE-PTD | 1 | $244.95 | |
| 9 | 5506-179 | PANEL,FENDER-FRT-LH S.S.ORANGE-PTD | 1 | $244.95 | |
| 10 | 3411-338 | DECAL,4-AGM | 1 | $15.11 | |
| 10 | 3411-336 | DECAL,4-BM | 1 | $15.11 | |
| 10 | 3411-337 | DECAL,4-SO | 1 | $15.11 |
