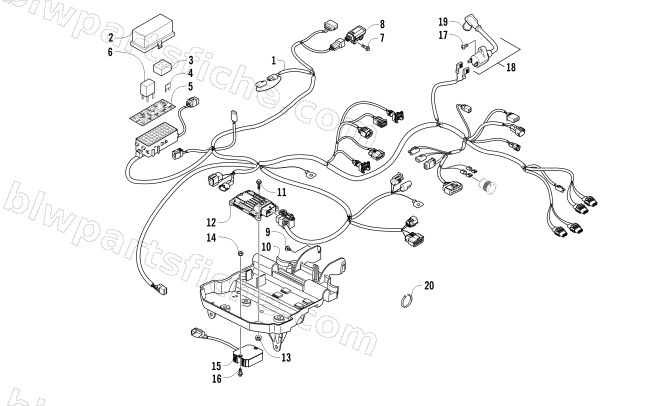

WIRING HARNESS ASSEMBLY
2013 XC 450 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-474 | HARNESS/DIA,MAIN (013 XC 450 US) | 1 | $818.95 | |
| 2 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 3 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 4 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 4 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 4 | 3304-212 | BLADE FUSE 30A | 1 | $4.95 | |
| 5 | 2411-566 | DECAL,PDM (2011 425/XC 450) | 1 | $65.95 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 6 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 7 | 3306-327 | SCREW WASHER 4*22 | 1 | $1.78 | |
| 8 | 3306-325 | SENSOR ANGLE DETECT | 1 | $129.95 | |
| 9 | 0423-345 | CLIP,PUSH | 1 | $0.95 | |
| 10 | 3306-454 | TRAY ELECTRICAL | 1 | $26.95 | |
| 11 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 12 | 0530-109 | KIT,ECU (2013 XC 450i) | 1 | $687.95 | |
| 13 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 14 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 15 | 3306-517 | REG RECT COMP | 1 | $219.95 | |
| 16 | 3305-344 | BOLT FLANGE 6*16 | 1 | $1.09 | |
| 17 | 3306-326 | BOLT WASHER 4*25 | 1 | $4.54 | |
| 18 | 0824-073 | COIL ASSY IGNITION (W/CAP) | 1 | $252.95 | |
| 19 | 0824-056 | CAP,SPARK PLUG | 1 | $37.95 | |
| 20 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 |
