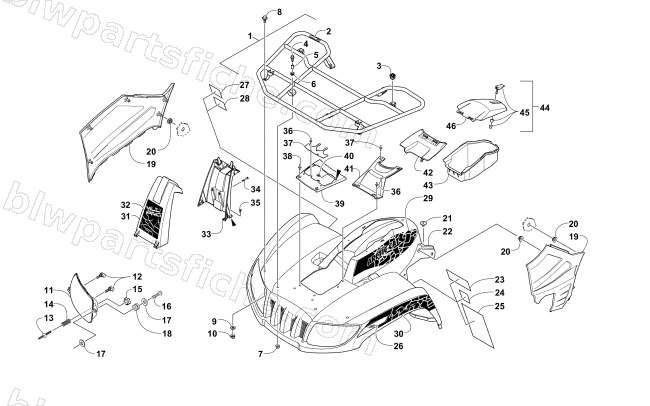

2014 Arctic Cat 1000 MUD PRO LTD — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2014 1000 MUD PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-643 | RACK,FRONT-ASSEMBLY (W/O FENCE) | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-802 | PANEL,SIDE-RH(TRV H2) | 1 | $66.95 | |
| 19 | 2406-803 | PANEL,SIDE-LH(TRV H2) | 1 | $82.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 22 | 5506-317 | FENDER,FRONT TEAM ARCTIC GREEN-ASSY | 1 | $1,396.95 | |
| 23 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 24 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 25 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 26 | 4411-818 | R/B 6411-412 | 1 | $1.59 | |
| 26 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 28 | 1411-906 | DECAL,WARNING-THROTTLE | 1 | $16.49 | |
| 29 | 3411-558 | DECAL,SIDE-RH-TEAM ARCTIC GRN (MUDPRO) | 1 | $33.95 | |
| 29 | 3411-559 | DECAL,SIDE-LH-TEAM ARCTIC GRN (MUDPRO) | 1 | $33.95 | |
| 30 | 3411-624 | DECAL,EFI-1000-RH-TEAM AIC GRN(MUDPRO | 1 | $19.25 | |
| 30 | 3411-625 | DECAL,EFI-1000-LH-TEAM AIC GRN(MUDPRO | 1 | $19.25 | |
| 31 | 5506-298 | COVER,SNORKEL FRONT TEAM ARCTIC GRN-PTD | 1 | $163.95 | |
| 32 | 3411-566 | DECAL,SNORKEL-TEAM ARCTIC GREEN | 1 | $10.97 | |
| 33 | 5506-299 | COVER,SNORKEL REAR TEAM ARCTIC GREEN-PTD | 1 | $163.95 | |
| 34 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 35 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 36 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 37 | 2416-100 | SHIELD,SPLASH | 1 | $10.97 | |
| 38 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 39 | 2516-170 | COVER,RADIATOR ACCESS-ROUTED | 1 | $33.95 | |
| 40 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 41 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 42 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 43 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 44 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 45 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 46 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 |
