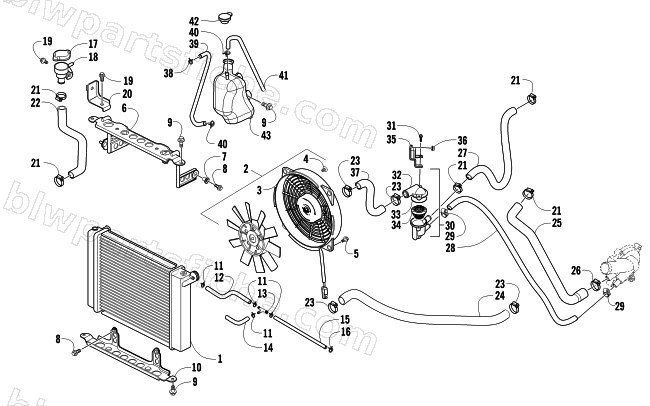

COOLING ASSEMBLY

2014 450

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3306-334	RADIATOR COMP	1	$244.95
2	3306-333	SHROUD ASSY	1	$252.95
3	3306-335	SHROUD COMP	1	$26.95
4	3306-405	SCREW	1	$1.95
5	3304-587	BOLT WASHER 6*16	1	$1.23
6	3306-347	STAY,RADIATOR UPPER	1	$54.95
7	3303-226	COLLAR FR FENDER	1	$1.64
8	3304-551	BOLT FLANGE 6*22	1	$0.81
9	3304-652	BOLT WASHER 6*12	1	$1.09
10	3306-348	STAY,RADIATOR LOWER	1	$20.63
11	3304-161	CLIP B7 TUBE	1	$1.37
12	3306-345	HOSE A WATER	1	$3.71
13	3306-346	JOINT 3 WAY 3.5 (2 ND)	1	$5.37
14	3306-374	HOSE B WATER	1	$3.02
15	3306-375	HOSE C WATER	1	$4.82
16	3306-349	CLIP C8 TUBE	1	$1.78
17	3303-748	CAP COMP	1	$26.95
18	3303-738	UNIT RADIATOR	1	$47.95
19	3304-553	BOLT FLANGE 6*12	1	$0.81
20	3306-336	STAY,UNIT RADIATOR	1	$5.37
21	1423-008	CLAMP D27.5	1	$8.21
22	3306-344	HOSE,WATER	1	$16.49
23	3306-256	CLAMP WATER HOSE	1	$4.82
24	3306-343	HOSE,WATER	1	$37.95
25	0410-216	HOSE,WATER B	1	$33.95
26	3305-941	CLAMP,D28	1	$6.20
27	3306-255	HOSE THERMOSTAT A	1	$20.63
28	3306-258	HOSE THERMOSTAT B	1	$12.35
29	0423-098	CLAMP,HOSE(NORMA FBS 17-12)	1	$2.75
30	0808-192	THERMOSTAT (2010 450)	1	$118.95
31	3303-384	BOLT FLANGE SH 6*25	1	$0.81
32	0808-202	COVER THERMOSTAT	1	$16.49
33	0830-205	O-RING 18.3X2	1	$3.95
34	0813-050	THERMOSTAT ASSY	1	$99.95
35	3306-260	BRKT THERMOSTAT STAY	1	$4.40
36	3304-654	NUT FLANGE 6MM	1	$1.23
37	3306-257	HOSE WATER	1	$30.95
38	3303-349	CLIP B10 TUBE	1	$0.95
39	3306-340	HOSE ASSY,WATER	1	$6.75
40	3304-163	CLIP C11 TUBE	1	$1.78
41	3306-339	HOSE ASSY DRAIN	1	$13.73
42	3303-749	CAP RESERVE TANK	1	$3.71
43	3313-661	TANK,RESERVE	1	$30.95
