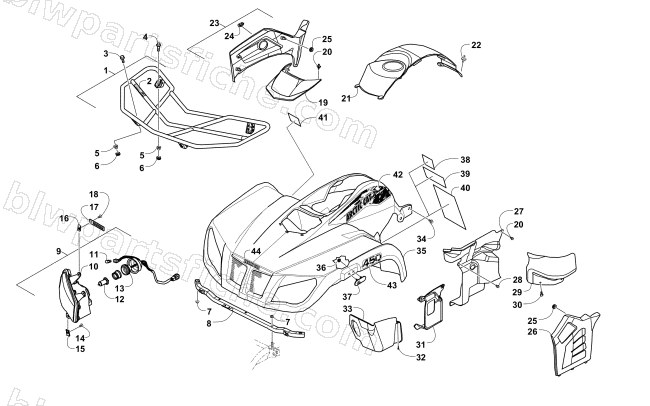

2014 Arctic Cat 450 — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2014 450
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-330 | RACK,FRONT | 1 | $227.95 | |
| 2 | 1411-681 | DECAL,WARNING RACK (75LB) | 1 | $19.25 | |
| 3 | 3313-522 | BOLT,M8*25 | 1 | $1.78 | |
| 4 | 3313-713 | BOLT,FLANGE 8*50 | 1 | $3.02 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 8 | 3306-331 | TUBE,REAR MOUNT-FRONT RACK | 1 | $33.95 | |
| 9 | 3306-268 | LIGHT ASS'Y R HEAD | 1 | $205.95 | |
| 9 | 3306-269 | LIGHT ASS'Y L HEAD | 1 | $205.95 | |
| 10 | 3306-270 | UNIT HEAD LIGHT R | 1 | $180.95 | |
| 10 | 3306-271 | UNIT HEAD LIGHT L | 1 | $180.95 | |
| 11 | 3303-847 | BULB POSITION LIGHT 12V5W | 1 | $5.65 | |
| 12 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 13 | 3306-272 | SOCKET COMP | 1 | $30.95 | |
| 14 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 15 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 16 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 17 | 3304-157 | CLIP 2*70 | 1 | $1.92 | |
| 18 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 19 | 3306-404 | ACCESS PANEL,ELECTRIC (BLACK) | 1 | $13.73 | |
| 20 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 21 | 3306-397 | COVER,TANK (MARSH) | 1 | $13.73 | |
| 21 | 3306-280 | COVER,TANK (RED) | 1 | $16.49 | |
| 22 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 23 | 3313-857 | PANEL,SIDE-RH-ASSY | 1 | $66.95 | |
| 24 | 3306-307 | CAP, SIDE COVER | 1 | $3.44 | |
| 25 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 26 | 3313-667 | PANEL,SIDE-LH | 1 | $79.95 | |
| 27 | 3306-284 | PANEL,SPLASH RIGHT | 1 | $20.63 | |
| 27 | 3306-285 | PANEL SPLASH LEFT | 1 | $20.63 | |
| 28 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 29 | 3313-844 | PROTECTOR HOSE | 1 | $16.49 | |
| 30 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 31 | 3306-286 | PANEL FRONT,SPLASH RIGHT | 1 | $33.95 | |
| 31 | 3306-287 | PANEL ASSY,SPLASH LEFT | 1 | $32.95 | |
| 32 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 33 | 3313-754 | SHIELD LINKAGE | 1 | $13.73 | |
| 34 | 3305-783 | BOLT WASHER 8*16 | 1 | $3.02 | |
| 35 | 3306-399 | FENDER,FRONT-W/DECALS (MARSH) | 1 | $567.95 | |
| 35 | 3306-282 | FENDER,FRONT (RED) W/DECALS | 1 | $567.95 | |
| 36 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 37 | 3313-359 | REFLECTOR,FRONT (OVAL) | 1 | $13.73 | |
| 38 | 4411-818 | R/B 6411-412 | 1 | $1.59 | |
| 39 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 40 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 41 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 42 | 3411-492 | DECAL,SIDE-RH-MARSH (C-BODY) | 1 | $61.95 | |
| 42 | 3411-493 | DECAL,SIDE-LH-MARSH (C-BODY) | 1 | $61.95 | |
| 42 | 3411-406 | DECAL,SIDE-RH-RED (C-BODY) | 1 | $61.95 | |
| 42 | 3411-407 | DECAL,SIDE-LH-RED (C-BODY) | 1 | $61.95 | |
| 43 | 3411-614 | DECAL,450-MARSH GREEN | 1 | $15.11 | |
| 43 | 3411-613 | DECAL,450-RED | 1 | $16.49 | |
| 44 | 2411-465 | DECAL,"ARCTIC CAT" | 1 | $5.65 |
