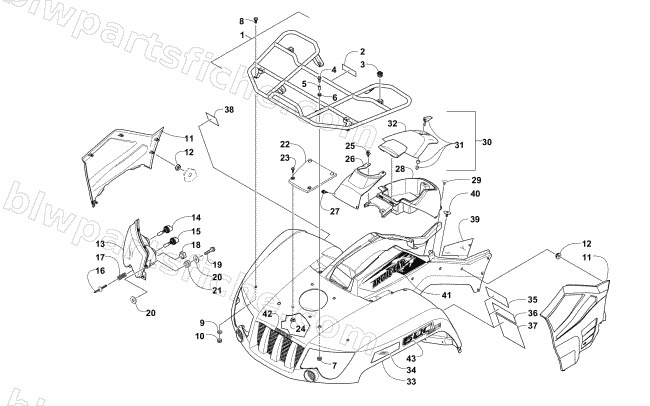

2014 Arctic Cat 500 XT — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2014 500 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-107 | RACK,FRONT W/FENCE-ASSEMBLY | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 2406-302 | PANEL,SIDE-RH | 1 | $66.95 | |
| 11 | 2416-133 | PANEL,SIDE-LH (450) | 1 | $50.95 | |
| 12 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 13 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 13 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 14 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 15 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 16 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 17 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 18 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 19 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 22 | 4506-378 | COVER,RADIATOR-MATTE BLK-PTD | 1 | $51.95 | |
| 22 | 2516-459 | COVER,RADIATOR-BURNT ORANGE | 1 | $45.95 | |
| 23 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 24 | 0423-997 | NUT,T W/TEETH-M6 | 1 | $0.68 | |
| 25 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 26 | 4506-379 | COVER,POST STEERING-MATTE BLACK-PTD | 1 | $41.95 | |
| 26 | 5506-008 | COVER,STEERING POST-GLOSS BLACK-PTD | 1 | $69.95 | |
| 27 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 28 | 4506-380 | BOX,STORAGE-MATTE BLACK-PTD | 1 | $160.95 | |
| 28 | 5506-010 | BOX,STORAGE-GLOSS BLACK-PTD | 1 | $114.95 | |
| 29 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 30 | 2506-235 | COVER,STORAGE BOX-W/LATCH | 1 | $58.95 | |
| 31 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 32 | 1406-862 | COVER,STORAGE BOX | 1 | $57.95 | |
| 33 | 2516-421 | FENDER,FRONT-A. T. CAMO-ASSY | 1 | $2,086.95 | |
| 33 | 2516-400 | FENDER,FRONT BURNT ORANGE-ASSY | 1 | $1,253.95 | |
| 34 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 34 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 35 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 36 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 37 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 38 | 4411-818 | R/B 6411-412 | 1 | $1.59 | |
| 39 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 40 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 41 | 3411-498 | DECAL,SIDE-RH-CAMO (B-BODY) | 1 | $50.95 | |
| 41 | 3411-499 | DECAL,SIDE-LH-CAMO (B-BODY) | 1 | $50.95 | |
| 41 | 3411-578 | DECAL,SIDE-RH-SUNSET ORANGE (B-BODY) | 1 | $50.95 | |
| 41 | 3411-579 | DECAL,SIDE-LH-SUNSET ORANGE (B-BODY) | 1 | $50.95 | |
| 42 | 3411-326 | DECAL,GRAPHIC-REAR(BLACK) (MATTE) | 1 | $17.87 | |
| 42 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 43 | 3411-500 | DECAL,EFI-500-CAMO | 1 | $12.35 | |
| 43 | 3411-505 | DECAL,EFI-500-SUNSET ORANGE | 1 | $4.95 |
