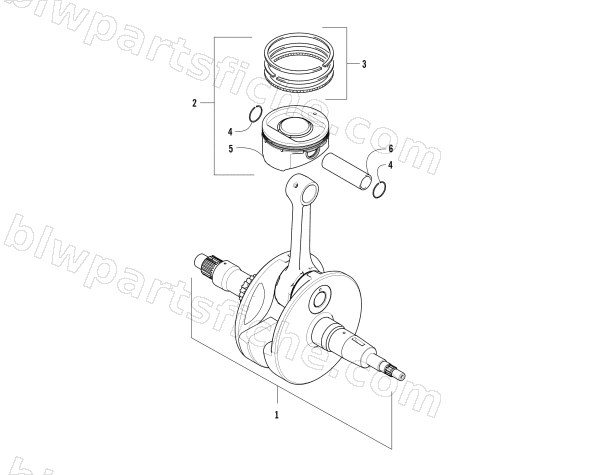

2014 Arctic Cat 550 — CRANKSHAFT AND PISTON ASSEMBLY
2014 550
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-325 | CRANKSHAFT,FINAL-ASSEMBLY-82-(N1 BLUE) | 1 | $1,085.95 | |
| 2 | 0805-064 | PISTON SET, ASSY, A550 | 1 | $220.95 | |
| 3 | 0805-065 | RING SET, PISTON, A550 (PURCH. ASM ONLY) | 1 | $187.95 | |
| 4 | 0831-001 | CIRCLIP, PISTON PIN | 1 | $17.95 | |
| 6 | 0805-012 | PIN, PISTON | 1 | $42.95 |
