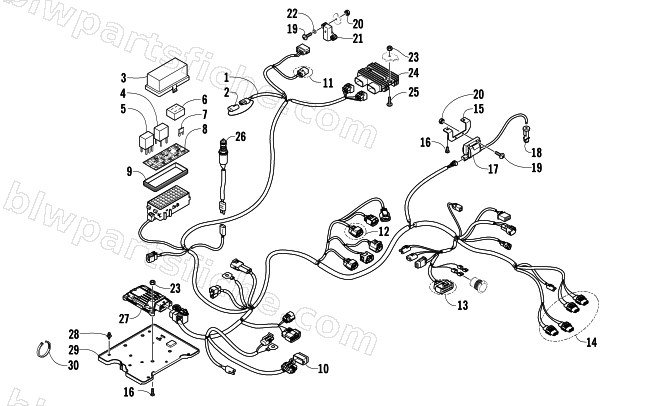

WIRING HARNESS ASSEMBLY
2014 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-501 | HARNESS, MAIN/DIA (014 550) | 1 | $668.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 4 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 5 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 6 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 3411-968 | DECAL,PDM (2014 ATV SYN) | 1 | $14.95 | |
| 9 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 10 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 11 | 1436-416 | KIT,TILT SENSOR CONNECTOR REPAIR | 1 | $26.95 | |
| 12 | 0437-071 | REPAIR,KIT-ISC | 1 | $42.95 | |
| 13 | 1436-818 | KIT,CAN GAUGE CONNECTOR | 1 | $90.95 | |
| 14 | 1436-290 | KIT,HL CONNECTOR REPAIR (B BODY) | 1 | $16.49 | |
| 15 | 4406-029 | BRACKET,COIL MTG | 1 | $8.21 | |
| 16 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 17 | 0824-071 | COIL/CAP,IGN-ASSY (012 H1/H2) | 1 | $260.95 | |
| 18 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 19 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 20 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 21 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 22 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 23 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 24 | 0824-078 | REGULATOR,VOLTAGE (35-AMP) | 1 | $212.95 | |
| 25 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 26 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 27 | 0530-114 | ECM,EFI-PROGRAMMED-SYN(014 ATV 550) | 1 | $687.95 | |
| 28 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 29 | 2416-181 | PANEL,ELECTRICAL-EFI-SYNERJECT | 1 | $33.95 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
