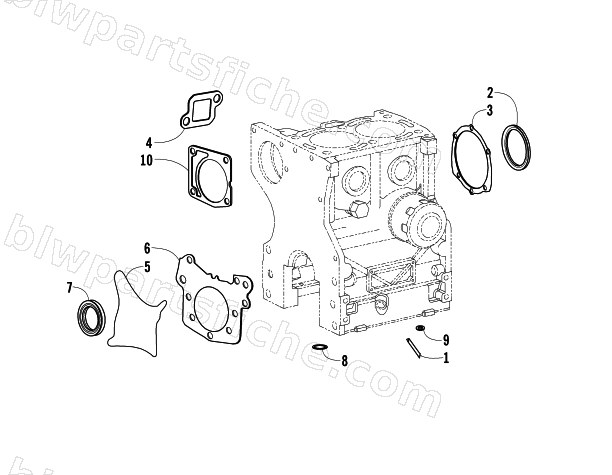

2014 Arctic Cat 700 DIESEL — BOTTOM END GASKET SET ASSEMBLY
2014 700 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3206-329 | BOTTOM END GASKET SET | 1 | $187.95 | |
| 1 | 3206-054 | GASKET | 1 | $16.49 | |
| 2 | 3206-091 | SEAL RING 70X88X8 | 1 | $85.95 | |
| 3 | 3206-358 | GASKET,ENGINE FLANGE | 1 | $20.63 | |
| 4 | 3206-264 | GASKET | 1 | $5.51 | |
| 5 | 3206-172 | O RING | 1 | $20.63 | |
| 6 | 3206-173 | GASKET | 1 | $17.87 | |
| 7 | 3206-161 | SEAL, SHAFT OIL PUMP | 1 | $54.95 | |
| 8 | 3206-176 | RUBBER OIL SEAL | 1 | $4.40 | |
| 9 | 3206-177 | OIL SEAL DIAM. 8,00 | 1 | $10.97 | |
| 10 | 3206-272 | PUMP BODY GASKET | 1 | $6.89 |
